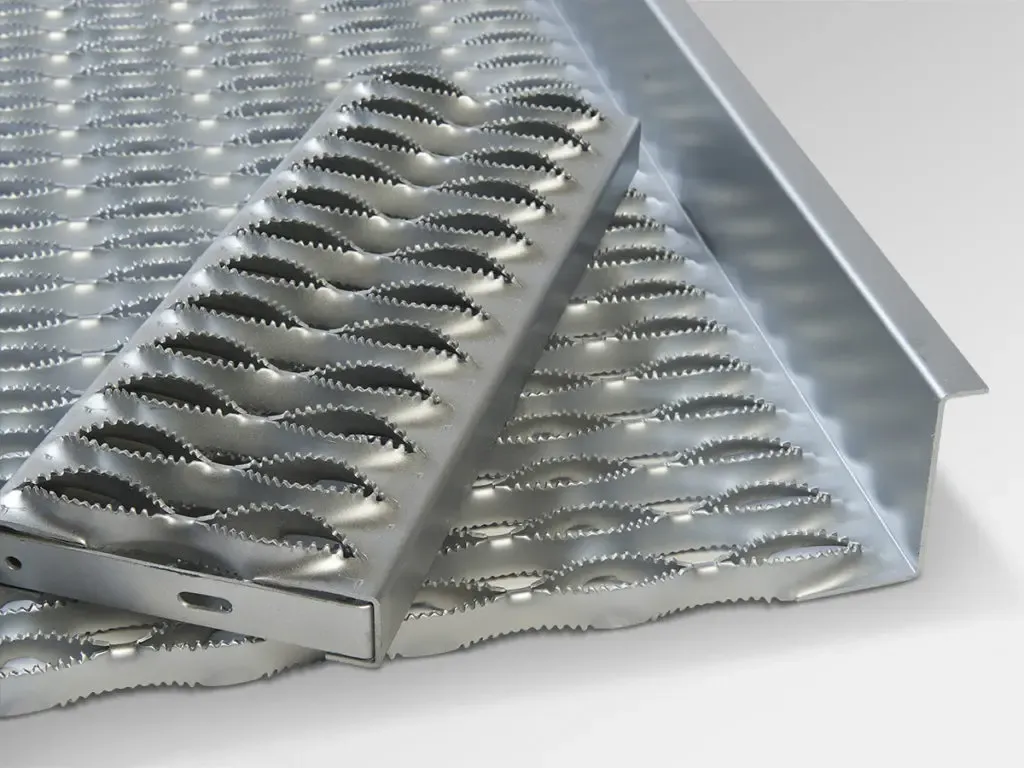

304 Stainless Steel Grip Strut Grating

Product Overview

304 stainless steel grip strut grating is engineered for demanding industrial environments where corrosion resistance, hygiene, and structural integrity are non-negotiable. Manufactured from 18/8 chromium-nickel austenitic stainless steel (UNS S30400), this grating delivers reliable performance across a temperature range from cryogenic conditions to 870°C continuous service. The diamond-shaped punched openings, measuring 46mm x 16mm standard, provide efficient drainage and slip resistance while maintaining a 40% open area for light transmission and ventilation. Each panel is produced with a mill finish, 2B, or No.4 brushed surface, depending on application requirements, and is fully traceable to an ISO 3834-2 certified production line in Suzhou.

Structural Load Performance and Validation

Structural performance is validated through rigorous load testing in accordance with EN 1990 (Eurocode 0) and EN 1991-1-1 (Eurocode 1) for imposed loads on structures. A 3.0mm thick panel spanning 600mm supports a concentrated load of up to 480 kg, with a maximum deflection of less than L/200 under service load conditions. Thickness options include 2.0mm, 2.5mm, 3.0mm, and 4.0mm, with standard panel sizes of 240x1220mm, 300x1220mm, and 400x2440mm. Custom dimensions are available with tolerances held to ±1.5mm in length and ±1.0mm in width, per ASTM A480/A480M general requirements for flat-rolled stainless steel products.

Material Composition and Corrosion Resistance

The material composition of 304 stainless steel provides excellent resistance to atmospheric corrosion, fresh water, steam, and mild chemical environments including organic acids, dairy products, and many food-grade cleaning agents. In annealed condition, the grating is non-magnetic (permeability below 1.02 μ at 200 Oe), which is critical for applications near sensitive electronic equipment, MRI facilities, or magnetic separation processes. The chromium content (18-20%) forms a passive oxide layer that self-repairs when exposed to oxygen, eliminating the need for painting, galvanizing, or any protective coating. This reduces lifecycle maintenance costs by an estimated 60-80% compared to carbon steel alternatives in corrosive environments.

Precision Fabrication and Safety Compliance

Grip strut grating is fabricated using precision punching and shearing processes that maintain dimensional stability within ±0.5mm for hole pattern alignment. The diamond openings are designed with a 90° included angle to maximize slip resistance in both longitudinal and transverse directions. Each panel is deburred and edge-conditioned to remove sharp edges, meeting OSHA 1910.23 and EN ISO 14122-2 safety requirements for walking surfaces. For applications requiring enhanced traction, the No.4 brushed finish provides a unidirectional grain pattern that improves grip in wet or oily conditions, commonly specified in food processing plants and pharmaceutical cleanrooms.

Finite Element Analysis and Load Capacity Data

Load capacity data is derived from finite element analysis (FEA) validated by physical testing in an in-house laboratory. For a 3.0mm thick panel with 600mm simple span, the ultimate load capacity exceeds 720 kg with a safety factor of 1.5 against yield. Deflection at working load (480 kg) is typically 2.8mm, well within the L/200 limit of 3.0mm. These values assume uniform load distribution and simply supported boundary conditions. For cantilever applications or point loads near panel edges, contact the engineering team for specific load tables. All test data is documented per ISO 17025 quality management principles and available upon request.

Applications & Industries

In offshore oil and gas platforms, 304 stainless steel grip strut grating is specified for walkways, mezzanine floors, and equipment platforms where saltwater spray and hydrocarbon exposure are constant. The material's resistance to pitting corrosion in chloride environments (up to 200 ppm Cl- at ambient temperature) makes it suitable for topside applications on FPSO vessels and fixed platforms. Typical installations include access platforms around wellheads, pig launchers, and chemical injection skids, where grating panels must withstand foot traffic, tool drops, and occasional chemical spills without degradation. Load ratings for these applications typically follow DNV-OS-E101 or API RP 2A-WSD requirements for offshore structures.

Food Processing and Hygiene Compliance

Food processing facilities rely on 304 stainless steel grating for drainage covers, platform flooring, and conveyor access walkways in wet processing areas. The non-porous surface resists bacterial growth and meets USDA and FDA 21 CFR 175.300 requirements for food contact surfaces. In meat processing plants, where daily washdowns with hot water (80°C) and chlorinated sanitizers are standard, the grating maintains its integrity without rust staining or surface degradation. The 40% open area allows rapid drainage of wash water and debris, reducing standing water that can harbor pathogens. Installations in breweries and dairies benefit from the material's resistance to lactic acid, citric acid, and caustic cleaning solutions (pH 2-12) at temperatures up to 60°C.

Pharmaceutical Cleanroom Applications

Pharmaceutical and biotechnology facilities specify 304 stainless steel grip strut grating for cleanroom mezzanines, equipment platforms, and utility corridors where contamination control is critical. The No.4 brushed finish provides a surface roughness of Ra 0.5-0.8 μm, which minimizes particle entrapment and facilitates cleaning with isopropyl alcohol and other disinfectants. In ISO Class 7 (Class 10,000) and ISO Class 8 (Class 100,000) cleanrooms, grating panels are installed with sealed edges and smooth transitions to prevent particle generation. The non-magnetic property is essential in areas near MRI machines, NMR spectrometers, and other sensitive analytical equipment where ferromagnetic materials are prohibited.

Mining and Chemical Processing Durability

Mining and mineral processing operations use 304 stainless steel grating in flotation cells, leach tanks, and reagent mixing areas where exposure to dilute sulfuric acid, sodium cyanide, and other process chemicals is routine. In copper solvent extraction plants, grating walkways above electrolyte tanks (containing 180-200 g/L H2SO4) require materials that resist corrosion at elevated temperatures (40-50°C). 304 stainless steel grating provides service life exceeding 10 years in these environments, compared to 2-3 years for painted carbon steel. The diamond pattern allows fine ore particles and process liquids to pass through, preventing material buildup that could create slip hazards or fire risks in sulfide ore processing areas.

Power Generation and Nuclear Service

Power generation facilities, including combined cycle gas turbine plants and biomass power stations, install 304 stainless steel grating in turbine halls, cooling water intake structures, and flue gas desulfurization (FGD) areas. In FGD systems where limestone slurry and gypsum byproducts create abrasive, corrosive conditions, the grating withstands pH levels of 4-6 and temperatures up to 60°C without coating failure. For nuclear power applications, the low cobalt content (<0.05%) of 304 stainless steel minimizes activation under neutron flux, meeting ASTM A240 requirements for nuclear service. The grating is also specified for cooling tower access platforms and intake screens where continuous moisture and biological growth would degrade carbon steel alternatives.

Marine and Shipbuilding Applications

Shipbuilding and marine applications benefit from 304 stainless steel grating in engine rooms, pump rooms, and accommodation areas where fire safety and corrosion resistance are paramount. The grating meets IMO FTP Code Part 2 requirements for non-combustible materials and SOLAS Chapter II-2 regulations for fire integrity. In cruise ships and naval vessels, the non-magnetic property is critical for degaussing systems and mine countermeasure vessels. Typical installations include bilge access covers, ventilation grilles, and stair treads where the material's resistance to seawater splash and condensation ensures 20+ year service life without replacement. Panels are supplied with rounded edges and smooth surfaces to prevent injury to crew and passengers in high-traffic areas.

Why Choose Leading Top Union for 304 Stainless Steel Grip Strut Grating

Leading Top Union (领拓互联) operates a dedicated stainless steel grating production facility in Suzhou, China, with an annual capacity exceeding 50,000 square meters. The manufacturing process is certified to ISO 3834-2 (comprehensive quality requirements for fusion welding), EN 1090-2 EXC3 (execution class 3 for steel structures), and AWS D1.1 (structural welding code for steel). These certifications ensure that every panel meets international quality standards for dimensional accuracy, weld integrity, and material traceability. The quality management system is also ISO 9001:2015 certified, with documented procedures for incoming material inspection, in-process quality control, and final product testing.

Material Sourcing and Quality Verification

Material sourcing is a critical differentiator. 304 stainless steel coils are procured exclusively from mills that meet ASTM A240/A240M and EN 10088-2 standards, with full mill test certificates (EN 10204 Type 3.1) provided for each production batch. Chemical composition is verified by optical emission spectrometry (OES) for chromium (18.0-20.0%), nickel (8.0-10.5%), carbon (≤0.07%), and other elements. Mechanical properties are confirmed through tensile testing per ASTM E8/E8M, with minimum yield strength of 205 MPa and tensile strength of 515 MPa in the annealed condition. Any coil failing to meet these specifications is rejected before entering production, ensuring consistent material quality across all orders.

Engineering Support and Custom Fabrication

The engineering team provides technical support for load calculations, span configurations, and custom designs based on project-specific requirements. Using FEA software validated against physical test data, panel thickness, hole pattern, and bearing bar spacing can be optimized to meet exact load and deflection criteria. For projects requiring third-party certification, coordination with classification societies including DNV, Lloyd's Register, Bureau Veritas, and ABS is available for type approval and project-specific certification. Lead time for standard panels is 15-20 working days from order confirmation, with expedited production available for urgent projects. All shipments are packed with edge protectors and moisture barrier paper to prevent damage during transit.

Custom Fabrication and Alternative Materials

Custom fabrication services are offered including plasma cutting to non-standard dimensions, drilling for bolted connections, and welding of support frames or attachment clips. Custom hole patterns can be produced with tooling changes, with minimum order quantities of 50 square meters for non-standard patterns. For applications requiring enhanced corrosion resistance in severe marine or chemical environments, 316L stainless steel (UNS S31603) can be supplied as an alternative material. The quality control department performs dimensional inspection on 100% of panels using calibrated measuring tools traceable to national standards, with results documented in inspection reports that accompany each shipment.

Global Logistics and Export Capabilities

Global logistics capabilities ensure reliable delivery to project sites worldwide. Strategic inventory of standard panel sizes is maintained in the Suzhou warehouse, enabling rapid dispatch for maintenance and turnaround projects. For large-scale new construction, containerized shipments are coordinated with FCL (full container load) consolidation to minimize freight costs and transit time. Export documentation includes commercial invoices, packing lists, certificates of origin (Form A or COO), and material test certificates as required by the destination country. With experience shipping to over 40 countries including the United States, Canada, Germany, Australia, and the Middle East, the documentation and packaging requirements for international projects are well understood.

After-Sales Support and Warranty

After-sales support includes technical documentation packages with installation instructions, maintenance guidelines, and material traceability records. The warranty covers manufacturing defects in materials and workmanship for 24 months from date of shipment, with replacement panels provided at no cost for any confirmed defects. For ongoing projects, consignment stock programs and scheduled delivery agreements are offered to align with construction schedules. Contact the technical sales team at info@leadingtopunion.com or +86-512-xxxx-xxxx for project-specific quotations, load tables, or sample panels for evaluation. All technical inquiries are responded to within 24 hours and detailed proposals are provided within 3-5 working days for standard requirements.
