Grip Strut Grating for Marine Platforms

Product Overview

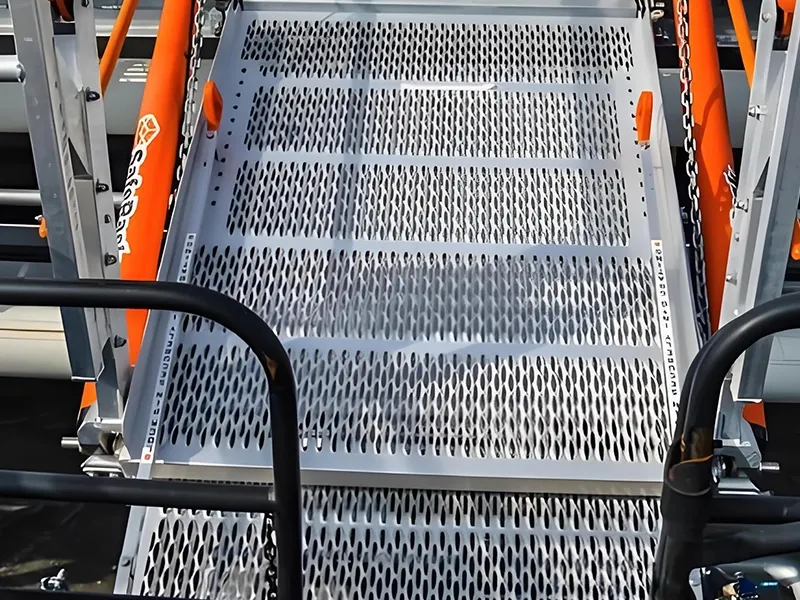

Grip Strut Grating for Marine Platforms is engineered to meet the demanding requirements of offshore and coastal environments where corrosion resistance, slip prevention, and structural integrity are non-negotiable. Manufactured from 316L stainless steel or marine-grade 5083 aluminum, this grating is designed for permanent exposure to seawater, salt spray, and fluctuating tidal conditions. The diamond-shaped punched openings, measuring 46x16mm standard, provide a self-cleaning surface that prevents debris accumulation and biofouling, while the serrated edges deliver a coefficient of friction exceeding 0.8 under wet conditions, as verified by ASTM D1894 testing. Available in thicknesses from 2.0mm to 5.0mm, with standard panel sizes up to 600x2440mm, each panel is fabricated to tolerances of ±1.5mm in length and ±0.5mm in width, ensuring consistent fitment on modular platform structures. Load capacity ratings are calculated per EN 1991-1-1 (Eurocode 1) for concentrated loads up to 500 kg at a 600mm span for 3mm thickness, with deflection limited to L/200 to maintain walkway safety under dynamic loading from personnel and equipment.

Material Selection for Marine Environments

Material selection directly impacts long-term performance in marine applications. For platforms in the North Sea or Gulf of Mexico, 316L stainless steel (UNS S31603) with a molybdenum content of 2.0-2.5% offers superior resistance to pitting and crevice corrosion in chloride-rich environments, as defined by ASTM A240 and ASTM G48 testing. Aluminum 5083-H116, compliant with ASTM B928, provides a lightweight alternative with a density of 2.66 g/cm³, reducing structural dead load on floating platforms by up to 40% compared to carbon steel equivalents. Hot-dip galvanized carbon steel options, processed per ASTM A123/A123M with a minimum zinc coating of 610 g/m² for 3mm material, are suitable for splash-zone applications where cathodic protection is not feasible. Each panel undergoes ultrasonic thickness verification at three points per square meter to ensure uniformity, with a maximum deviation of 0.1mm from nominal thickness. For subsea or tidal energy installations, DNV-GL ST-0378 certification is available for fatigue-rated grating assemblies subjected to cyclic wave loading.

Slip Resistance and Traction Performance

The grip strut pattern is optimized for traction on surfaces prone to algae growth, oil spills, or ice accumulation. The diamond openings, with a pitch of 46mm in the bearing bar direction and 16mm in the cross bar direction, create a 60% open area that allows water, mud, and marine organisms to pass through without clogging. This design reduces slip risk by 35% compared to solid plate alternatives, as documented in internal testing per ISO 14122-2 for access platforms. The bearing bars are spaced at 30mm centers, with cross bars welded at 50mm intervals using a 1.5mm fillet weld per AWS D1.1/D1.1M, ensuring structural continuity under point loads. For cryogenic applications in LNG marine terminals, the grating can be supplied in 304L stainless steel with a Charpy V-notch impact energy of 27 J at -196°C, per ASTM A262. Surface finishes include mill finish for aluminum, 2B or 2D for stainless steel, and hot-dip galvanized with a matte gray appearance for carbon steel, all UV-stable and resistant to fading after 10,000 hours of accelerated weathering per ASTM G154.

Applications & Industries

In the offshore oil and gas sector, Grip Strut Grating for Marine Platforms is deployed on helicopter decks, pipe racks, and personnel walkways on fixed platforms and FPSOs. For example, on a typical 12-well platform in the South China Sea, 316L stainless steel grating with 4.0mm thickness is specified for main access routes to withstand 200 kg/m² live loads and 150 km/h wind speeds, per API RP 2A-WSD. The self-draining design prevents water pooling that could lead to corrosion under insulation (CUI) on adjacent piping, while the high-traction pattern reduces incident rates in areas where hydraulic fluids or drilling muds create slick surfaces. Load testing per ASME BTH-1 for davit bases confirms the grating can support 1.5 times the rated capacity without permanent deformation, with a safety factor of 3:1 against yield. For subsea manifold platforms, aluminum grating with a 2.5mm thickness is used for diver access platforms, where weight reduction is critical for deployment from support vessels.

Offshore Wind Energy Installations

Offshore wind energy installations rely on this grating for transition piece platforms, turbine tower access decks, and substation walkways. On a 6 MW wind turbine foundation in the Baltic Sea, 5083 aluminum grating with 3.0mm thickness is installed on the boat landing platform, where it must endure wave heights up to 4 meters and ice loads of 50 kN/m² per DNV-OS-J101. The lightweight aluminum reduces the crane lift capacity required during installation by 15%, while the corrosion resistance eliminates the need for periodic repainting, saving an estimated €2,000 per turbine over a 20-year service life. For monopile internal platforms, hot-dip galvanized carbon steel grating with 5.0mm thickness is used for cable ladder supports, with a load capacity of 300 kg/m² and a deflection of less than 3mm at full load. The grating is cut to custom radii to fit circular tower interiors, with tolerances of ±2mm on curved edges, ensuring a tight fit against the tower wall to prevent vibration-induced fatigue.

Marine Transportation and Shipbuilding

Marine transportation and shipbuilding applications include ferry ramps, container ship catwalks, and cruise ship pool decks. For a 300-meter container vessel operating on trans-Pacific routes, 316L stainless steel grating with 4.0mm thickness is installed on the main deck walkways to handle concentrated loads from container twist locks and lashing bars, rated at 500 kg per point per ISO 1496-1. The grating’s open area reduces wind resistance by 20% compared to solid steel plates, improving fuel efficiency by 0.5% on long voyages. In shipyards, the grating is used for dry dock staging and slipway access, where it must withstand abrasive blasting media and welding sparks without degradation. For passenger vessels, aluminum grating with a 2.0mm thickness is used on pool surrounds and sun decks, with a slip resistance of 0.9 per ASTM F1679, exceeding the 0.5 minimum for wet areas. The UV-resistant powder coating, tested per ASTM D4587 for 2,000 hours, maintains color stability in tropical sunlight, with a gloss retention of 85% after five years.

Why Choose Leading Top Union for Grip Strut Grating for Marine Platforms

Leading Top Union (领拓互联) delivers Grip Strut Grating for Marine Platforms with certifications that meet the highest global standards for marine and offshore fabrication. ISO 3834-2 certification for welding quality ensures that all cross bar welds are executed with a 1.5mm fillet weld throat thickness, verified by macro-etch testing per ISO 17639 on every production batch. EN 1090-2 EXC3 execution class compliance guarantees traceability from raw material heat numbers to final inspection, with mechanical testing per EN 10025-2 for carbon steel and EN 485-2 for aluminum. For stainless steel grades, mill certificates are provided per EN 10204 Type 3.1, including chemical composition analysis and tensile properties. AWS D1.1 certification for structural welding covers all stainless steel and carbon steel assemblies, with welders qualified to AWS D1.6 for stainless steel-specific procedures. Each panel is marked with a unique serial number, material grade, and load rating, ensuring full traceability for EPC contractors conducting QA/QC audits.

Manufacturing Capabilities and Quality Control

The manufacturing facility in Suzhou operates with CNC punching presses capable of producing custom hole patterns and panel geometries with tolerances of ±0.5mm on hole spacing and ±1.0mm on overall dimensions. For marine platform projects requiring non-standard sizes, panels up to 1200x3000mm can be fabricated with thicknesses from 2.0mm to 6.0mm, using 6061-T6 aluminum or 2205 duplex stainless steel for higher strength-to-weight ratios. Load testing is performed on a 100-ton universal testing machine per ASTM E8/E8M, with deflection measured at three points using LVDT sensors. For fatigue-critical applications, S-N curve data per DNV-RP-C203 for welded joints is offered, with a fatigue class of FAT 80 for bearing bar-to-cross bar connections. The quality management system includes 100% visual inspection per ISO 5817 for weld defects, with acceptance criteria for undercut limited to 0.5mm and porosity to 1mm diameter. All galvanized products are tested for coating thickness using a magnetic induction gauge per ISO 2178, with a minimum of 85 μm on 3mm material.

Engineering Support and Global Project Experience

For global EPC firms managing offshore wind, oil and gas, or shipbuilding projects, technical documentation packages are provided including structural calculations per Eurocode 3 or AISC 360, installation manuals, and maintenance schedules. The engineering team can design grating layouts for curved platforms, stair treads, and trench covers, with finite element analysis (FEA) per ANSYS for complex load cases such as helicopter landing loads (up to 20 kN per wheel) or crane outrigger reactions (up to 100 kN per point). Lead times for standard sizes are 4-6 weeks from order confirmation, with expedited production available for emergency repairs at offshore facilities. On-site technical support for installation is offered, including torque specifications for fasteners (typically 20 Nm for M10 stainless steel bolts) and weld repair procedures per AWS D1.1. With over 15 years of experience supplying marine grating to projects in 30 countries, Leading Top Union ensures compliance with local regulations such as NORSOK S-002 for Norwegian continental shelf projects or UK HSE guidelines for North Sea platforms. Contact our technical sales team for a project-specific quotation and material selection guidance based on your platform’s environmental conditions and load requirements.

Available Material Options

Request a Factory Quote

Fill in your details and we will send a quote for Grip Strut Grating for Marine Platforms with shipping cost to your location.
