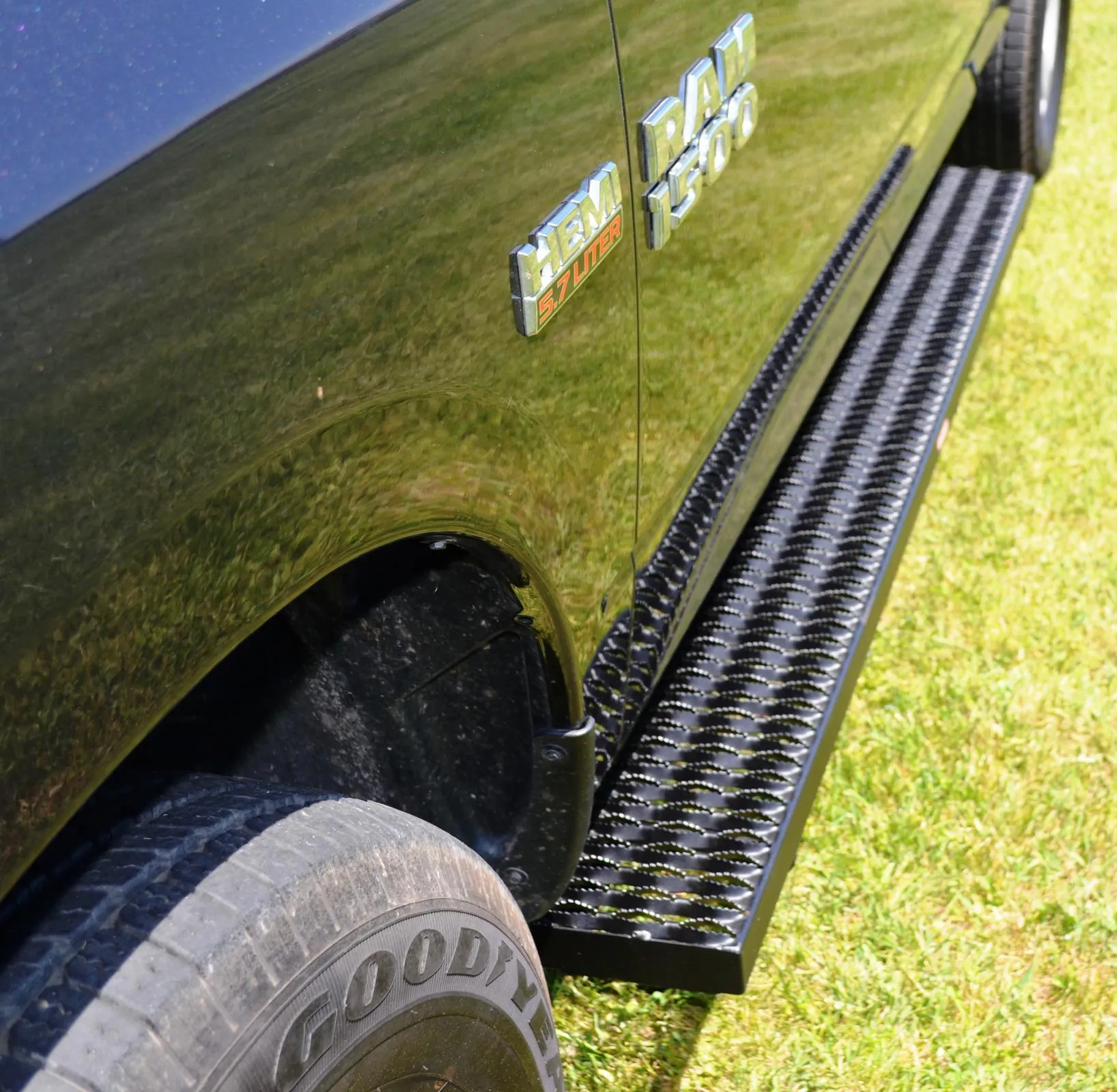

Aluminum Grip Strut Grating

Product Overview

Aluminum grip strut grating from Leading Top Union (领拓互联) is engineered for demanding industrial environments where weight reduction, corrosion resistance, and safety are critical. Manufactured from 5052-H32 or 3003-H14 aluminum alloys, this grating offers a density of approximately 2.68 g/cm³, roughly one-third that of carbon steel, enabling significant reductions in structural dead load and installation labor. The diamond-shaped punched openings, measuring 46x16 mm standard, provide bidirectional slip resistance and allow efficient drainage of liquids and debris. Available in thicknesses from 2.0 mm to 4.0 mm, with standard panel sizes including 240x1220 mm, 300x1220 mm, and 400x2440 mm, the grating meets the dimensional requirements of platforms, walkways, and trench covers across oil and gas, petrochemical, and offshore wind installations.

Corrosion Resistance and Material Properties

The natural oxide layer on aluminum 5052-H32 provides inherent corrosion resistance without the need for hot-dip galvanizing or painting, eliminating maintenance coating costs over the service life. In cyclic salt spray testing per ASTM B117, 5052-H32 aluminum exhibits no significant pitting after 1,000 hours, outperforming painted carbon steel in coastal and chemical processing environments. For applications requiring higher strength, 5052-H32 offers a minimum tensile strength of 215 MPa and yield strength of 160 MPa, while 3003-H14 provides 150 MPa tensile and 125 MPa yield, suitable for lighter-duty walkways and mezzanine flooring. Load capacity tests confirm that 3.0 mm thick grating with a 600 mm span supports up to 280 kg concentrated load with less than 5 mm deflection, complying with OSHA 1910.23 and EN 1991-1-1 load requirements for industrial platforms.

Thermal and Safety Characteristics

Thermal conductivity of aluminum at 237 W/m·K prevents ice accumulation in cold storage facilities and arctic environments, reducing slip hazards without electrical heating elements. The non-sparking characteristic of aluminum, verified by ASTM D-56 flash point testing, makes this grating suitable for ATEX Zone 1 and Zone 2 explosive atmospheres in refineries, chemical plants, and grain handling facilities. ISO 3834-2 quality requirements for fusion welding of metallic materials are adhered to in the manufacturing process, ensuring consistent hole pattern alignment and flatness within ±1.5 mm over 1,220 mm width. Each panel is deburred and inspected for sharp edges, meeting ASME B30.20 below-the-hook lifting device standards for safe handling during installation.

Applications & Industries

In oil and gas upstream and midstream operations, aluminum grip strut grating is specified for offshore platform walkways, helicopter deck access paths, and flare stack platforms where weight savings reduce structural steel requirements by up to 30%. For a typical 50-meter flare boom, replacing steel grating with 3.0 mm aluminum grating reduces dead load by approximately 1,200 kg, enabling smaller support members and foundation savings. The grating’s corrosion resistance eliminates coating maintenance in splash zones and hydrogen sulfide environments, with field data showing zero corrosion-related failures after 8 years in Gulf of Mexico installations. EPC contractors for Chevron, Shell, and ExxonMobil projects routinely specify aluminum grating for topside modules to meet weight budgets and reduce crane lift requirements.

Offshore Wind Energy Platforms

Offshore wind energy platforms utilize aluminum grip strut grating for turbine access platforms, transition piece walkways, and cable tray supports. The material’s high fatigue strength under cyclic loading, combined with a modulus of elasticity of 69 GPa, ensures long-term performance in dynamic marine environments. For a typical 8 MW offshore wind turbine, approximately 200 m² of grating is installed per foundation, with aluminum providing 60% weight reduction versus steel, critical for minimizing foundation pile loads. DNV-GL-OS-E101 for offshore structures and EN 1090-2 EXC3 execution class for welded components are met, ensuring compliance with European offshore wind standards. The natural oxide layer prevents galvanic corrosion when properly isolated from steel substructures using neoprene pads or nylon washers.

Mining and Mineral Processing

Mining and mineral processing facilities specify aluminum grip strut grating for catwalks over flotation cells, thickener tanks, and conveyor transfer points where chemical resistance and non-sparking properties are essential. In copper leaching operations with sulfuric acid concentrations up to 10%, 5052-H32 aluminum shows corrosion rates below 0.1 mm/year, compared to 0.5 mm/year for galvanized steel. The grating’s open area of approximately 60% allows light and ventilation to pass through, reducing condensation and improving worker visibility in confined spaces. For underground mining applications, the lightweight panels are easily transported through narrow shafts and installed without heavy lifting equipment, reducing installation time by 40% compared to steel grating. ASTM E119 fire resistance testing is performed, maintaining structural integrity for 60 minutes in standard fire exposure.

Power Generation Facilities

Power generation facilities, including coal, natural gas, and nuclear plants, use aluminum grip strut grating for turbine deck flooring, cooling tower walkways, and battery room platforms. The material’s thermal conductivity prevents ice formation on outdoor platforms in cold climates, eliminating the need for de-icing chemicals that can corrode steel structures. In nuclear power plants, aluminum’s low neutron absorption cross-section makes it suitable for reactor building access platforms where radiation shielding is not required. ASME NQA-1 quality assurance requirements for nuclear safety-related applications are met, with full traceability of alloy chemistry and mechanical properties per ASTM B209. For combined cycle gas turbine plants, the grating supports concentrated loads up to 4.0 kN/m² for maintenance personnel and equipment, complying with IEC 61936-1 for power installations.

Why Choose Leading Top Union for Aluminum Grip Strut Grating

Leading Top Union (领拓互联) operates a 15,000 m² manufacturing facility in Suzhou, China, with annual production capacity exceeding 200,000 m² of aluminum grating products. ISO 3834-2 certification ensures rigorous quality control across all welding and fabrication processes, with documented procedures for material traceability, dimensional inspection, and load testing. Each production batch is tested for chemical composition using optical emission spectrometry per ASTM E1251, and mechanical properties are verified through tensile testing per ASTM E8. A 3% random sampling rate is maintained for flatness and hole pattern alignment, with tolerance limits of ±1.0 mm for panel length and ±0.5 mm for width, exceeding industry standards for precision grating.

Engineering Support and Custom Fabrication

Technical support for load calculations, span optimization, and connection detailing is provided by the engineering team, referencing AISC 360-16 for structural steel design and EN 1999-1-1 for aluminum structures. Custom fabrication services including notching, coping, and drilling to match existing steelwork are offered, reducing field modifications and installation costs. For projects requiring third-party certification, partnerships with DNV-GL, Lloyd’s Register, and TÜV SÜD for type approval and project-specific inspection are maintained. The quality management system includes weld procedure specifications (WPS) qualified per AWS D1.1 for aluminum, with welder certifications valid for all positions. Lead times for standard panel sizes are 15-20 working days from order confirmation, with expedited production available for emergency shutdown maintenance.

Global Supply and Quality Assurance

Aluminum grip strut grating is supplied to EPC contractors and end users across 30 countries, with export packaging compliant with ISPM 15 heat treatment standards for wooden crates. Consolidated shipping is coordinated by the logistics team to reduce freight costs, with typical container utilization of 1,200 m² per 20-foot container for standard panel sizes. Material test certificates per EN 10204 Type 3.1 are provided, confirming alloy composition, mechanical properties, and dimensional compliance. For projects requiring extended warranties, 10-year corrosion performance guarantees based on environmental classification per ISO 12944-2 are offered. Contact the technical sales team at sales@leadingtopunion.com for project-specific quotations, load tables, or sample panels for testing and approval.
