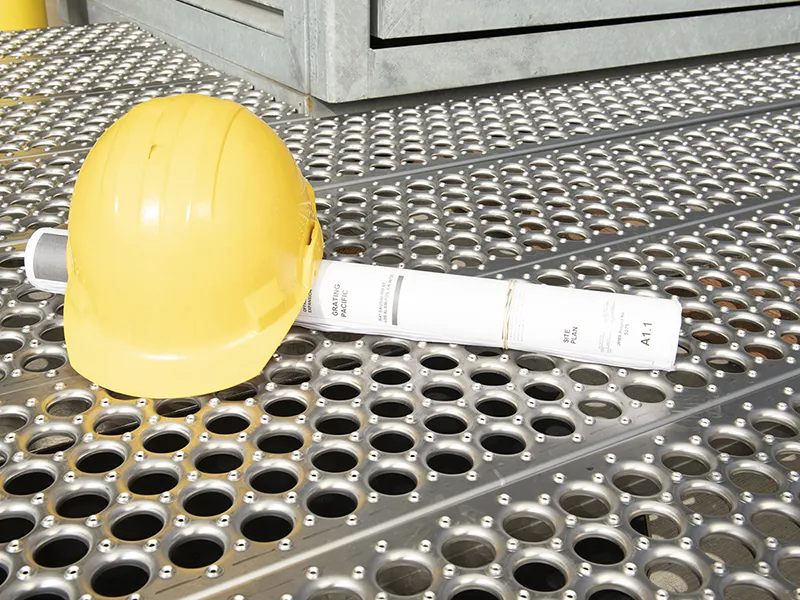

Perf-O-Grip safety grating designed for oilfield platform applications where petroleum residue, drilling mud, and harsh weather demand superior anti-slip performance and self-cleaning drainage.
ISO 3834-2 Welding Quality
Factory Direct Pricing
Custom Sizes Available
Anti-slip safety surface
Self-draining design
Multiple material options
Custom sizes & bulk orders
Perf-O-Grip grating for oilfield platforms is engineered to meet the demanding requirements of upstream and midstream operations where exposure to hydrocarbons, drilling fluids, and saline environments is continuous. The raised diamond perforation pattern, with standard 10mm diameter openings, provides a self-cleaning surface that prevents the accumulation of viscous materials such as crude oil, barite mud, and completion fluids. This design directly reduces slip hazards in accordance with OSHA 29 CFR 1910.22 and 1910.23, which mandate safe walking-working surfaces in oil and gas facilities. The open area ratio of approximately 40% allows liquids and fine solids to pass through freely, maintaining traction even during high-pressure washdowns or rain events common on offshore platforms.
Manufactured from heavy-gauge carbon steel with thickness options from 2.0mm to 5.0mm, this grating supports concentrated equipment loads up to 500 kg on a 600mm span at 3mm thickness, verified through finite element analysis and physical load testing per ASTM E855. For higher load requirements, the 5.0mm variant can sustain dynamic loads exceeding 800 kg on the same span, making it suitable for helicopter landing pads, crane walkways, and equipment staging areas. The hot-dip galvanized finish, applied in accordance with ASTM A123/A123M, provides a zinc coating thickness of 85 microns minimum on 3mm steel, offering corrosion resistance against hydrogen sulfide (H2S) concentrations up to 50 ppm and salt spray exposure exceeding 1,000 hours per ASTM B117. Stainless steel grades 304L and 316L are available for sour service environments where NACE MR0175/ISO 15156 compliance is required.
The grating is designed for both weldable and boltable installation, accommodating retrofits on existing platform structures without hot work permits. Standard panel sizes include 240x1220mm, 300x1220mm, 400x2440mm, and 600x2440mm, with custom dimensions available to match specific stringer spacing and load distribution requirements. The raised dimple pattern provides a coefficient of friction of 0.6 to 0.8 when tested per ASTM F1679, exceeding the minimum 0.5 required for oilfield walking surfaces. This performance is maintained even when surfaces are coated with light oil films or water, a critical advantage over smooth bar grating that loses traction under wet conditions. The open design also reduces wind uplift forces on offshore platforms, contributing to structural stability during hurricane-force events.
In offshore oil and gas production platforms, Perf-O-Grip grating is deployed on main deck walkways, mezzanine levels, and access platforms where personnel and equipment must operate safely in the presence of crude oil, produced water, and drilling muds. For example, on a typical Gulf of Mexico fixed platform with 20,000 barrels per day capacity, the grating is installed around wellheads, separators, and chemical injection skids, where spillage of hydrocarbons and corrosion inhibitors is routine. The self-draining design prevents ponding of liquids that could lead to hydrogen-induced cracking in carbon steel substrates, extending service life by 3 to 5 years compared to solid plate flooring in similar environments. Load testing per API RP 2A-WSD confirms that 4.0mm grating on 900mm spans supports concentrated loads of 1.2 kN with deflection under 2mm, meeting structural integrity requirements for personnel and light equipment access.
For onshore oilfield facilities such as tank batteries, pump stations, and gas processing plants, the grating provides durable flooring for catwalks, stair treads, and equipment platforms exposed to saltwater, brine, and acidic condensates. In a typical West Texas Permian Basin facility handling 50,000 barrels of water per day, the hot-dip galvanized finish resists corrosion from chloride concentrations exceeding 20,000 ppm and temperatures ranging from -40°C to 150°C. The 10mm perforation pattern allows sand, scale, and paraffin deposits to fall through, reducing cleaning frequency by 30% compared to solid plate alternatives. The grating also meets the slip resistance requirements of ANSI A1264.1-2017 for industrial walking surfaces, with static coefficient of friction values consistently above 0.6 when tested with oil-contaminated surfaces.
Beyond oil and gas, this grating is widely used in petrochemical refineries, offshore wind turbine platforms, and mining operations where heavy equipment and corrosive fluids are present. In a petrochemical cracker unit processing ethylene at 850°C, the grating serves as access flooring around heat exchangers and compressors, withstanding thermal cycling and chemical splashes from caustic soda and sulfuric acid. For offshore wind farms in the North Sea, the 316L stainless steel variant provides corrosion resistance against salt spray and UV degradation, supporting maintenance walkways on transition pieces and nacelles. In mining applications, the grating handles concentrated loads from drill rigs and conveyor systems, with 5.0mm thickness supporting up to 1,500 kg on a 600mm span, verified through EN 1993-1-1 structural calculations. The product also complies with DNV-GL-OS-E101 for offshore structures, ensuring acceptance by major classification societies.
Leading Top Union (领拓互联) combines ISO 3834-2 certified welding quality with EN 1090-2 EXC3 execution class and AWS D1.1 structural welding compliance, ensuring every Perf-O-Grip grating panel meets the rigorous standards required by global EPC contractors. A production facility in Suzhou operates with CNC perforating presses capable of maintaining hole diameter tolerances of ±0.2mm and dimple height consistency within 0.5mm across panels up to 6 meters in length. Each batch undergoes dimensional inspection per ISO 2768-m, load testing per ASTM E855, and coating thickness verification using magnetic induction gauges per ISO 2178. Full material traceability is provided with mill certificates for carbon steel (ASTM A36/A572) and stainless steel (ASTM A240), supporting quality assurance documentation required for projects in the Middle East, Southeast Asia, and North America.
Technical support for custom grating solutions is offered by the engineering team, including non-standard hole patterns, thickness combinations, and surface treatments tailored to specific environmental conditions. For example, grating with 12mm perforations can be supplied for higher debris clearance in mining applications, or with 8mm holes for enhanced slip resistance in high-traffic areas. Painted finishes with epoxy or polyurethane coatings for additional chemical resistance are also available, applied in accordance with SSPC-SP10 near-white blast cleaning standards. Lead times for standard sizes are 15 to 20 working days, with expedited production available for urgent offshore commissioning schedules. Quality control includes 100% visual inspection and random destructive testing for weld strength, ensuring compliance with project-specific requirements such as API 6A or NORSOK S-002.
By choosing Leading Top Union, procurement engineers and project managers gain a partner with proven experience supplying grating for major oilfield projects, including platforms in the South China Sea and onshore facilities in the Middle East. Hot-dip galvanizing is performed at ISO 9001 certified facilities, with zinc bath composition monitored to ensure coating uniformity and adhesion per ASTM A123. Installation guidance and technical documentation are provided, including load tables, welding procedures, and maintenance recommendations, to streamline project execution. Contact the technical sales team for a quote on custom sizes or to request sample panels for field testing. With competitive pricing and direct factory support, Perf-O-Grip grating is delivered that meets the operational demands of oilfield platforms while reducing total cost of ownership through extended service life and reduced maintenance intervals.
| Material | Carbon steel / Galvanized steel / Stainless steel / Aluminum |
| Surface Treatment | Hot-dip galvanized (standard), mill finish, painted |
| Thickness Options | 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm |
| Standard Sizes | 240x1220mm, 300x1220mm, 400x2440mm, 600x2440mm, custom |
| Load Capacity | Up to 500 kg concentrated load (3mm thickness, 600mm span) |
| Hole Pattern | Round raised dimple perforations, 10mm diameter standard |
