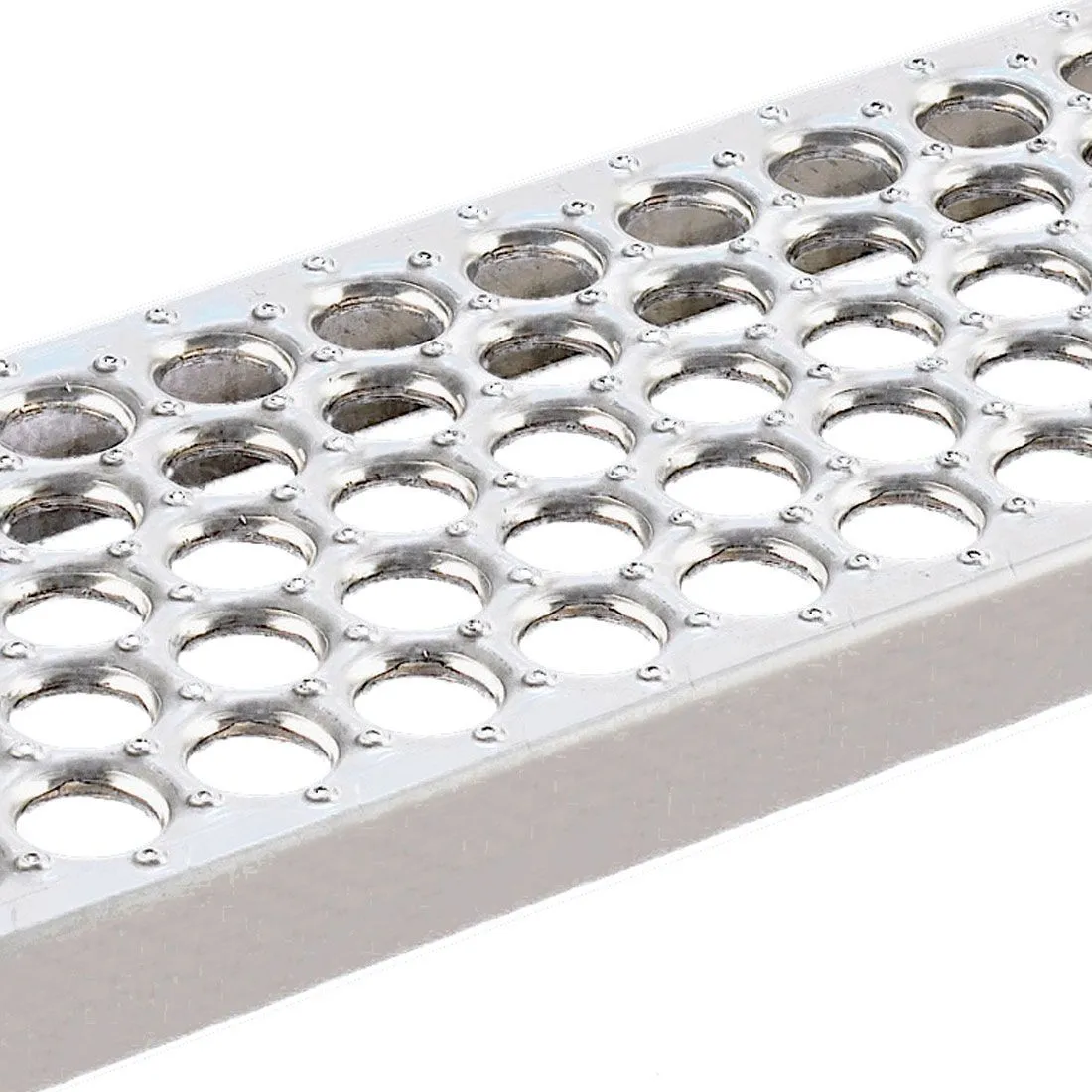

316 Stainless Steel Perf-O-Grip Grating

Product Overview

Leading Top Union’s 316 Stainless Steel Perf-O-Grip Grating is engineered for demanding corrosive environments where standard 304 grade fails prematurely. Manufactured from 316 stainless steel with a nominal composition of 16% chromium, 10% nickel, and 2% molybdenum (16/10/2 Cr-Ni-Mo), this grating delivers exceptional resistance to pitting and crevice corrosion in chloride-laden atmospheres. The molybdenum content, typically 2.0–2.5% per ASTM A240, significantly enhances passivation stability, making it suitable for continuous exposure to seawater, brine solutions, and aggressive chemical media including dilute sulfuric acid (up to 20% concentration at 50°C) and hydrochloric acid vapors. Each panel is produced via precision punching of diamond-shaped openings (standard 46x16mm pattern) from flat sheet stock, with no welding or assembly joints that could become corrosion initiation sites. Available thicknesses range from 2.0mm to 4.0mm, with standard panel sizes of 240x1220mm, 300x1220mm, and 400x2440mm, plus custom dimensions up to 1500x3000mm upon request. The open area ratio of approximately 60% provides excellent drainage, ventilation, and light transmission while maintaining structural rigidity.

Structural Performance and Load Ratings

Structural performance of 316 Stainless Steel Perf-O-Grip Grating is validated through finite element analysis and load testing per EN 1991-1-1 and ASME BTH-1. For a 3.0mm thick panel with 600mm simple span, the concentrated load capacity reaches 470 kg with a maximum deflection of 2.5mm, well within the L/200 serviceability limit. At 4.0mm thickness, the same span supports 680 kg concentrated load with deflection under 1.8mm. Uniform load ratings exceed 7.5 kN/m² for 3.0mm panels at 600mm spans, suitable for pedestrian walkways, light industrial platforms, and maintenance access routes. The diamond hole pattern is designed to minimize stress concentration at corners, with edge distances maintained at minimum 8mm per ISO 2768-m tolerances. Surface finish options include mill finish (2B) with Ra ≤ 0.5μm for general corrosion resistance, and No.4 brushed finish (Ra 0.6–1.0μm) for applications requiring reduced friction or improved cleanability in food-contact or pharmaceutical settings. All panels are deburred and passivated per ASTM A967 to remove surface iron contamination and restore the chromium oxide layer.

Temperature and Corrosion Resistance in Harsh Environments

Temperature performance of 316 stainless steel in grating applications is critical for process industries. The material maintains full structural integrity from cryogenic conditions down to -196°C (per ASME BPVC Section II Part D) up to 800°C in intermittent service, though continuous use above 500°C may reduce corrosion resistance due to carbide precipitation. For chemical processing environments involving hot organic acids or chlorinated hydrocarbons, the 2% molybdenum content provides a critical pitting temperature (CPT) of 25–30°C in ASTM G48 Method A testing, compared to 15–20°C for 304 grade. In marine atmospheres per ISO 9223 corrosivity category C5-M (very high marine), 316 stainless steel Perf-O-Grip Grating exhibits corrosion rates below 0.1 μm/year, translating to a service life exceeding 50 years with minimal maintenance. The grating’s open design prevents salt accumulation and promotes natural washing by rainfall, further extending longevity in offshore and coastal installations. For high-temperature chemical exposure up to 300°C, such as in petrochemical reactor platforms, the material retains its passive film integrity, unlike coated carbon steel alternatives that require frequent recoating.

Applications & Industries

Offshore oil and gas platforms represent the primary application for 316 Stainless Steel Perf-O-Grip Grating, where exposure to salt spray, seawater splash zones, and hydrocarbon vapors demands materials with proven chloride resistance. On North Sea platforms with average salinity of 3.5% and temperatures ranging from -10°C to 40°C, 316L grade (low carbon variant) grating is specified for helideck walkways, pipe rack access platforms, and flare tower stair treads per NORSOK M-001 standard. The diamond pattern provides slip resistance exceeding 0.6 coefficient of friction (wet) per ASTM F1679, meeting DNV-GL-OS-A101 requirements for offshore safety equipment. A typical 400x2440mm panel weighing 18.5 kg (3.0mm thickness) can be installed by a single technician, reducing labor costs compared to heavier steel alternatives. In the Gulf of Mexico, where hurricane-force winds exceed 150 km/h, the grating’s open area reduces wind loading by 40% versus solid plate, minimizing structural demands on supporting beams. Lifecycle cost analysis shows 316 stainless steel grating achieves payback within 5–7 years versus galvanized steel in offshore environments, due to elimination of replacement cycles every 3–5 years for coated products.

Chemical Processing Plant Performance

Chemical processing plants handling corrosive media benefit from 316 Stainless Steel Perf-O-Grip Grating’s resistance to a wide pH range. In sulfuric acid production facilities, where dilute acid concentrations (10–30%) at temperatures up to 60°C are common, 316 stainless steel exhibits corrosion rates below 0.5 mm/year per ASTM G31 immersion testing, compared to 1.5 mm/year for 304 grade. For hydrochloric acid environments typical in pickling lines or metal finishing operations, the molybdenum content reduces attack rates by 60% versus 304, enabling use in vapor-phase areas above acid baths. The grating is specified for catwalks, mezzanine floors, and trench covers in chlor-alkali plants, where chlorine gas and sodium hydroxide solutions are present. In these settings, the No.4 brushed finish is preferred to minimize chemical adherence and facilitate washdown with deionized water. The 2.0mm thickness option (maximum span 400mm, load capacity 250 kg concentrated) is ideal for light-duty platforms above chemical storage tanks, where weight reduction is critical for existing structural supports. All panels are supplied with rounded edges and smooth hole perimeters to prevent glove snagging and chemical trapping.

Coastal and Marine Infrastructure Applications

Coastal infrastructure and marine facilities rely on 316 Stainless Steel Perf-O-Grip Grating for long-term durability in salt-laden air. Seawater desalination plants using reverse osmosis or thermal distillation require grating for intake structures, chemical dosing platforms, and brine discharge areas. In these environments, the material withstands chlorinated seawater (residual chlorine 0.5–2.0 ppm) at temperatures up to 40°C without pitting, per ASTM G48 Method C testing. For shipbuilding applications, the grating meets Lloyd’s Register and ABS requirements for non-skid decking on chemical tankers and offshore support vessels, where exposure to cargo residues and seawater is continuous. The 46x16mm diamond pattern provides drainage of 80 liters per minute per square meter, preventing standing water that accelerates corrosion in less resistant materials. In power generation plants located in coastal zones, the grating is used for cooling water intake screens, turbine deck platforms, and condenser access areas. With a 50-year design life per ISO 12944-9 for offshore structures, 316 stainless steel eliminates the need for coating maintenance, which typically costs $50–100 per square meter every 5–7 years for painted steel in C5-M environments.

Why Choose Leading Top Union for 316 Stainless Steel Perf-O-Grip Grating

Leading Top Union’s manufacturing facility in Suzhou, China, holds ISO 3834-2 certification for fusion welding of metallic materials, ensuring consistent quality control across all production processes for 316 Stainless Steel Perf-O-Grip Grating. EN 1090-2 EXC3 certification (execution class 3) for structural steel components guarantees traceability from raw material receipt to final inspection, with documented weld procedures per EN ISO 15609-1 and welder qualifications per EN ISO 9606-1. 316 stainless steel coils are sourced exclusively from mills with ASTM A240/A240M certification, verifying chemical composition via optical emission spectroscopy (OES) on each heat. Mechanical properties are confirmed through tensile testing per ASTM E8/E8M, with minimum yield strength of 170 MPa and tensile strength of 485 MPa for thicknesses up to 4.0mm. The quality management system includes 100% dimensional inspection using calibrated gauges per ISO 2768-m, with hole pattern tolerances of ±0.5mm and panel flatness within 2mm over 1000mm length. Each production batch is accompanied by EN 10204 Type 3.1 inspection certificates, providing full material traceability for EPC project documentation.

Custom Engineering and Compliance Capabilities

Technical engineering support is provided for global EPC firms with custom grating solutions for complex project requirements. Non-standard hole patterns are offered, including 30x10mm for enhanced slip resistance in oil-contaminated environments, or 60x20mm for maximum drainage in high-flow applications. Custom panel sizes up to 1500x3000mm are produced with CNC punching accuracy of ±0.3mm, reducing onsite cutting waste by up to 15% compared to standard panels. For projects requiring compliance with AWS D1.1 structural welding code, certified weld attachments for grating supports are provided, including serrated flat bars and toe plates, with pre-qualified weld procedures per AWS D1.1 Table 3.1. Surface treatment capabilities extend beyond standard finishes: electropolishing to Ra ≤ 0.3μm for pharmaceutical or semiconductor cleanroom applications, and glass bead blasting for uniform matte appearance in architectural installations. Load capacity calculations are provided per ASME BTH-1 Design Category B, with deflection limits specified to client requirements (L/100 to L/400). For offshore projects, grating with DNV-GL type approval certification is available upon request, including corrosion testing per NORSOK M-001 and fire resistance testing per ISO 834 for hydrocarbon fire scenarios.

Logistics, Delivery, and Global Support

Logistics and delivery reliability are critical for international EPC project schedules, and Leading Top Union maintains a 4,000-square-meter warehouse in Suzhou with 500+ tons of 316 stainless steel grating in standard sizes and thicknesses ready for immediate shipment. Average lead time for custom orders is 15–20 working days, with expedited production available for emergency requirements within 7–10 days. Export to 35+ countries is conducted with FOB Shanghai or CIF terms, using seaworthy crating per ISPM 15 standards for wooden packaging. Each shipment includes packing lists, material certificates, and inspection reports in English, with digital copies provided within 24 hours of dispatch. Technical support responds to inquiries within 4 hours during business hours (UTC+8), offering application engineering assistance for load calculations, corrosion resistance selection, and installation guidelines. Free samples of 316 stainless steel Perf-O-Grip Grating (200x200mm) are provided for client testing and approval before bulk production, with courier delivery within 5 working days worldwide. For long-term framework agreements, volume discounts of 5–15% are offered based on annual quantities, with fixed pricing for 12-month contracts to support project budgeting.
