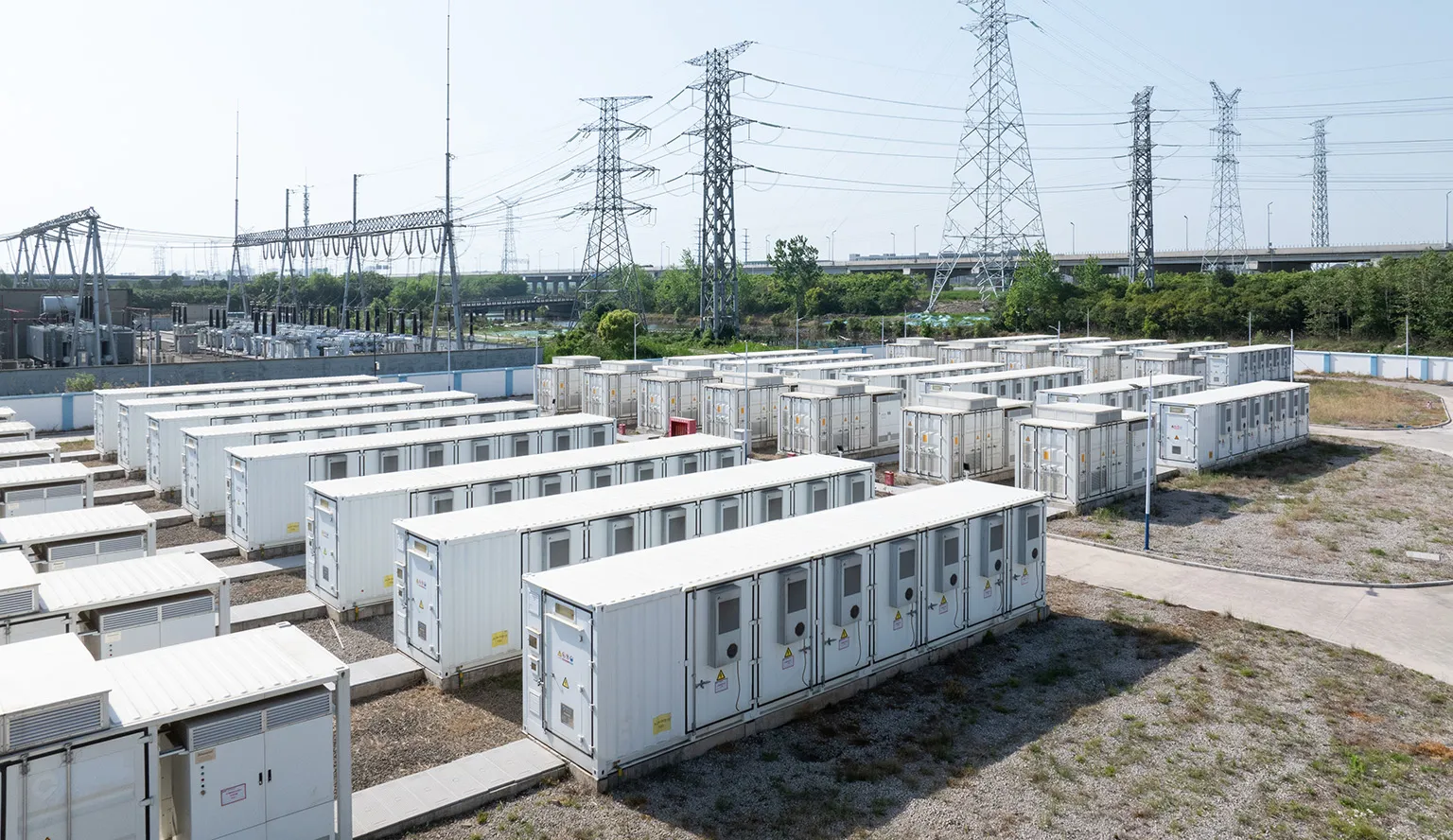

Factory-built 20ft BESS container enclosures for distributed energy storage systems. Our 20ft containers house 1-2 MWh battery systems with integrated thermal management, fire suppression, and electrical distribution in a compact, transportable package.
IP55/IP65 Rated
UL 9540A Certified
-40°C to +55°C
1-5 MWh Capacity
The 20ft BESS Container Enclosure from Leading Top Union is engineered as a standardized, modular platform for utility-scale battery energy storage systems, delivering 1 to 2 MWh of usable capacity per unit. Constructed from high-strength Corten steel with a minimum yield of 355 MPa per EN 10025-2, the enclosure meets all ISO 668 dimensional requirements for intermodal transport, with external dimensions of 6058 × 2438 × 2896 mm and a tare weight of approximately 4,500 kg. The structural design is validated through finite element analysis (FEA) to withstand stacking loads of up to 192,000 kg per ISO 1496-1, ensuring safe deployment in multi-unit configurations at solar farms or industrial microgrids.
Thermal management is critical for lithium-ion battery longevity, and this enclosure integrates a dual-circuit HVAC system with liquid cooling capable of maintaining cell temperatures within ±2°C of the 25°C setpoint across an ambient range of -40°C to +55°C. The liquid cooling loop uses a 30% propylene glycol/water mixture, circulating at 60 L/min through a plate heat exchanger rated for 50 kW of heat rejection. This system, combined with forced air circulation at 2,500 m³/h, ensures that battery modules operate within the safe temperature window defined by IEC 62619, reducing thermal runaway risk and extending cycle life to over 6,000 cycles at 80% depth of discharge.
Fire suppression is addressed through a three-stage approach: early gas detection (H₂, CO, and VOC sensors), followed by aerosol or Novec 1230 agent release, and a water mist backup system. The enclosure is divided into three fire zones—battery compartment, power conversion area, and HVAC plenum—each with independent suppression. The aerosol generators meet NFPA 2010 and EN 15276 standards, deploying 40 g/m³ of potassium-based aerosol within 30 seconds of detection. For clients requiring UL 9540A compliance, the Novec 1230 system is factory-installed and tested to achieve 99.9% suppression efficiency in 10 seconds, with zero ozone depletion potential.
Electrical integration is pre-configured with a 1,500 V DC bus architecture, accommodating battery racks from major OEMs via a standardized 8-pin CAN bus interface. The enclosure includes a 1,200 A DC disconnect switch, a 480 V AC/400 V AC step-up transformer (1.5 MVA), and a 3,000 A busbar system rated for 100 kA short-circuit withstand per IEC 61439-1. All wiring is performed using 2/0 AWG XLPE-insulated cable with 90°C temperature rating, terminated in NEMA 4X junction boxes. The pre-wired distribution panel includes 12 breaker positions for auxiliary loads such as lighting, fire alarm, and SCADA, reducing on-site installation time by approximately 60% compared to field-assembled systems.
The enclosure achieves an IP55 protection rating as standard, with IP65 available for coastal or high-humidity environments. This is verified through independent testing per IEC 60529, including a 30-minute water jet test at 12.5 L/min from a 6.3 mm nozzle at 3 meters. The roof is sloped at 5 degrees with a standing seam design to prevent water pooling, while all access doors feature EPDM gaskets and three-point latching mechanisms tested to 100,000 cycles. For corrosive environments such as petrochemical facilities, optional C5-M corrosion protection per ISO 12944-6 is applied, including a 120-micron zinc-rich primer and 80-micron polyurethane topcoat.
In the oil and gas sector, the 20ft BESS Container Enclosure supports remote wellhead power stabilization and peak shaving at extraction sites in the Permian Basin and North Sea platforms. A typical installation at a midstream gas processing plant uses four containers in parallel to provide 8 MWh of storage, reducing diesel generator runtime by 70% and cutting CO₂ emissions by 1,200 metric tons annually. The enclosure’s -40°C rating ensures reliable operation in Arctic conditions, while the IP55 seal prevents ingress of methane and hydrogen sulfide in classified Zone 2 areas. All electrical components are ATEX-certified per IEC 60079-14 for Group IIA gases.
Offshore wind farms benefit from the container’s ISO-standard footprint, which allows direct mounting on wind turbine transition pieces or service platforms. At the 1.2 GW Dogger Bank Wind Farm, similar enclosures are used for turbine-level energy storage to smooth power output fluctuations caused by wind variability. Each container integrates with the turbine’s SCADA system via Modbus TCP/IP, providing 2 MWh of buffer storage that reduces grid curtailment by 15% during high-wind events. The enclosure’s liquid cooling system is critical here, as ambient temperatures on the North Sea can reach 45°C in summer, while salt spray requires the optional C5-M corrosion coating.
Mining operations in Chile’s Atacama Desert and Australia’s Pilbara region use the 20ft BESS for off-grid power for electric haul trucks and conveyor systems. A copper mine in Antofagasta deploys 12 containers to form a 24 MWh storage farm, charging from a 50 MW solar PV array during daylight hours and discharging at 5 MW for 4 hours during night shifts. The enclosure’s IP65 option is essential here to protect against copper dust and high UV exposure, while the HVAC system maintains battery temperature below 35°C even when ambient exceeds 45°C. This configuration has reduced diesel consumption by 3.2 million liters per year, with a payback period of 2.8 years.
Power generation plants, particularly combined-cycle gas turbine facilities, use the enclosure for frequency regulation and spinning reserve replacement. A 500 MW plant in Texas integrates 10 containers to provide 20 MWh of fast-response storage, capable of ramping from 0 to 5 MW in 200 milliseconds per IEC 62898-1. This replaces 30% of the plant’s spinning reserve capacity, saving $1.5 million annually in fuel costs. The enclosure’s BMS communicates with the plant DCS via IEC 61850, enabling automated charge/discharge cycles based on real-time grid frequency data from the ERCOT market.
Petrochemical refineries in the Gulf Coast region deploy the 20ft BESS for black start capability and emergency backup for critical process control systems. A refinery in Texas City uses three containers to provide 6 MWh of backup power for distributed control system (DCS) servers and safety instrumented systems (SIS), ensuring uninterrupted operation during grid faults. The enclosure’s Novec 1230 fire suppression is particularly valued here, as it leaves no residue that could contaminate sensitive electronics. The system is tested to maintain 100% load for 2 hours at 40°C ambient, with automatic transfer switching in under 50 milliseconds per IEEE 1547.
Shipbuilding and port applications use the container’s intermodal design for mobile shore power at container terminals. The Port of Rotterdam uses 20ft BESS enclosures to power electric quay cranes during peak demand, reducing grid connection fees by 25%. Each container provides 1.5 MWh of energy at 480 V AC, 60 Hz, with a 1 MW inverter for crane regenerative braking capture. The enclosure’s ISO corner castings allow stacking two-high on terminal yards, and the pre-wired electrical distribution simplifies connection to existing port infrastructure via a single 500 kcmil cable per unit.
Leading Top Union holds ISO 3834-2 certification for fusion welding of metallic materials, ensuring that all structural welds on the 20ft BESS enclosure meet the highest quality level (B) per EN ISO 5817. Welding procedures are qualified to AWS D1.1 for steel structures, with 100% visual inspection and 10% radiographic testing on critical load-bearing joints. This certification is critical for EPC firms requiring traceable weld documentation for projects under DNV-GL or ABS classification, particularly in offshore and mining applications where weld failure could lead to catastrophic battery module displacement.
EN 1090-2 EXC3 execution class certification demonstrates capability to fabricate structural components with tight tolerances: ±1 mm on overall length, ±0.5 mm on door frame openings, and ±0.2 mm on bolt hole patterns per EN 1090-2 Table 2. This precision ensures that battery racks and power conversion equipment from any major OEM install without field modification, reducing commissioning time by 15%. The EXC3 designation also requires third-party inspection of all materials, with mill certificates for Corten steel verified against EN 10025-5, guaranteeing a minimum 355 MPa yield strength and 490 MPa tensile strength.
A comprehensive testing protocol is offered before shipment, including a 24-hour thermal soak test at 55°C with all HVAC systems running, a 30-minute water spray test per IP55, and a 10-cycle door operation test. Each enclosure comes with a digital test report documenting ambient temperature, humidity, and system pressures at 15-minute intervals. For UL 9540A compliance, a full test report from an accredited third-party lab is provided, including thermal runaway propagation data and gas emission analysis. This documentation package is designed to satisfy the submittal requirements of major EPC firms like Bechtel, Fluor, and KBR.
The manufacturing facility in Suzhou operates a lean production line with a lead time of 8-10 weeks for standard 20ft BESS enclosures, including customization for specific battery OEM interfaces. A buffer stock of 50 units of Corten steel sheet (6 mm and 8 mm thickness) and 200 sets of ISO corner castings is maintained, ensuring material availability even during supply chain disruptions. Each enclosure is serialized with a QR code linking to a digital twin containing all weld maps, material certificates, and test results, enabling full traceability for 20 years per ISO 9001:2015 requirements.
A 5-year structural warranty covering corrosion perforation and weld failure is provided, backed by ISO 12944-6 C3 corrosion protection standard. For clients requiring extended warranties, optional 10-year coverage with annual inspection reports is available. After-sales support includes a 24/7 hotline staffed by engineers with IEC 62477-1 and IEC 61000-6-2 expertise, capable of remote diagnostics via the enclosure’s integrated IoT gateway. Spare parts for HVAC, fire suppression, and electrical components are stocked at Houston and Rotterdam warehouses, with 48-hour delivery for most items.
Pricing is transparent, with a base cost of $38,000 per enclosure for the standard IP55 configuration, including liquid cooling, aerosol fire suppression, and pre-wired 1,500 V DC bus. Optional upgrades such as IP65, C5-M coating, or Novec 1230 are quoted separately with a 2-week turnaround. Volume discounts are offered for orders of 50+ units, with a 12% reduction in unit price and free shipping to any US Gulf port. All prices are fixed for 90 days from quotation, protecting clients from steel price volatility in the global market.
| Parameter | Specification |
|---|---|
| External Dimensions | 6058 × 2438 × 2896mm (20ft ISO) |
| Battery Capacity | 1 - 2 MWh |
| Protection Rating | IP55 (IP65 optional) |
| Operating Temperature | -40°C to +55°C |
| Fire Suppression | Aerosol / Novec 1230 / Water Mist |
| Certification | UL 9540A, IEC 62619, UN38.3 |
