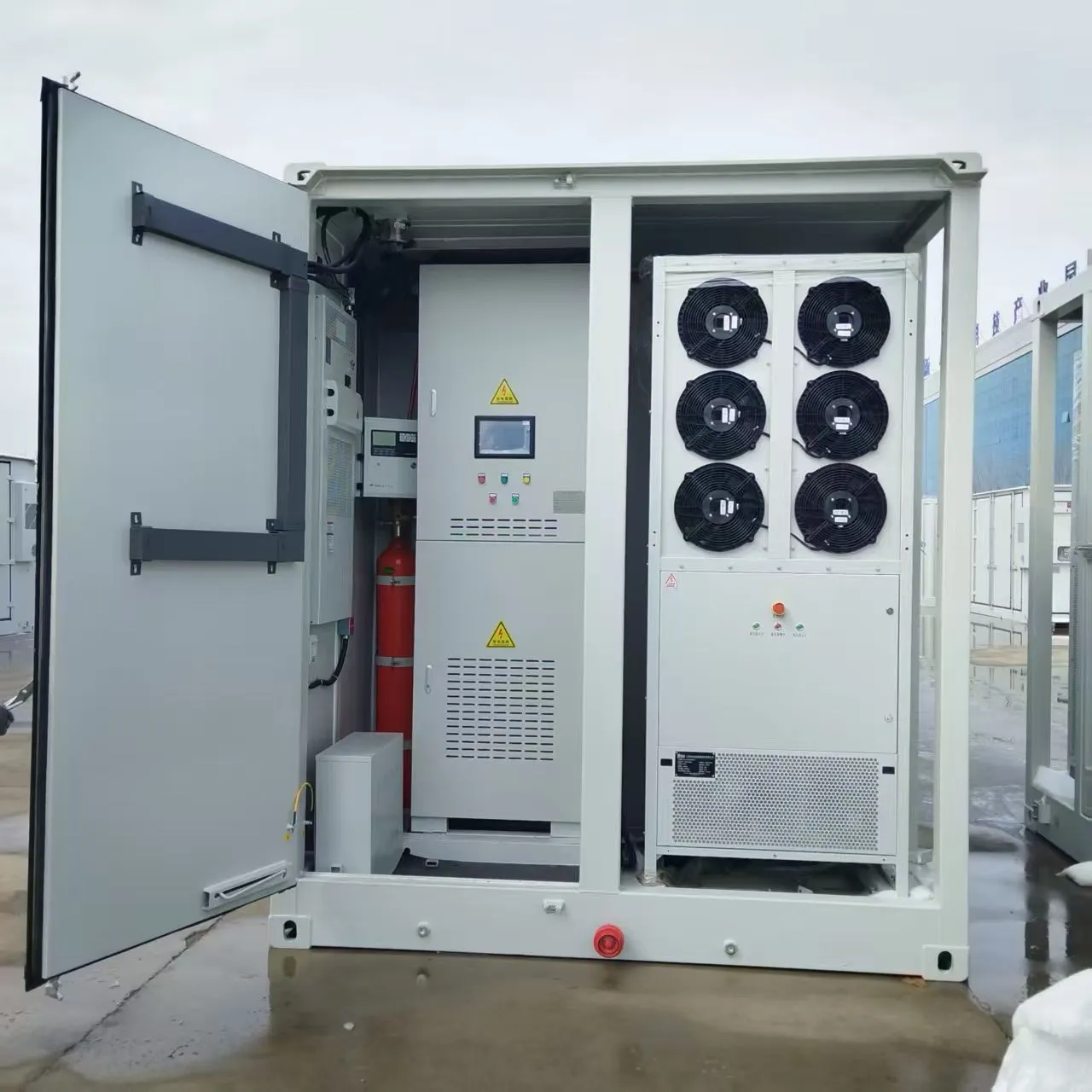

Compact outdoor BESS cabinets for commercial and industrial energy storage applications. Our cabinets provide 100-500 kWh capacity in a weatherproof enclosure with integrated thermal management, suitable for rooftop, parking lot, and building-adjacent installations.
IP55/IP65 Rated
UL 9540A Certified
-40°C to +55°C
1-5 MWh Capacity
The Outdoor BESS Cabinet is engineered for distributed energy storage in space-constrained industrial sites. Each cabinet delivers 100 to 500 kWh of usable capacity within a footprint as small as 1200×800×2200 mm, enabling deployment in congested substation yards, rooftop areas, or alongside existing switchgear. The IP65-rated enclosure protects lithium-iron-phosphate (LFP) battery modules and integrated power conversion systems against dust ingress, high-pressure water jets, and salt spray corrosion. Operating reliably from -30°C to +50°C, the cabinet maintains thermal stability through forced-air cooling with redundant fans, ensuring less than 2°C temperature differential across all battery racks during continuous 0.5C charge/discharge cycles.
Structural design follows EN 1090-2 EXC3 execution class for welded steel frames, with hot-dip galvanized base plates meeting ASTM A123/A123M requirements for corrosion resistance in coastal or chemical processing environments. The cabinet’s modular architecture allows capacity expansion from 100 kWh to 500 kWh by adding standardized battery trays without modifying existing wiring or cooling infrastructure. Each tray houses 16 prismatic LFP cells arranged in a 4S4P configuration, with cell-level fusing and voltage monitoring per IEC 62619. The integrated battery management system (BMS) communicates via Modbus TCP/IP to site SCADA, providing real-time state-of-charge (SOC) accuracy within ±2% and state-of-health (SOH) trending over 6,000 cycles at 80% depth of discharge. Cell balancing is performed passively with a 30 mA bleed current, maintaining voltage deviation below 5 mV per cell during idle periods. The BMS also logs cycle-by-cycle degradation data, enabling predictive maintenance scheduling based on actual usage patterns rather than fixed intervals.
Ground-mount installation eliminates the need for concrete foundations, reducing civil works by up to 60% compared to traditional containerized systems. The cabinet’s base frame incorporates adjustable leveling feet with ±15 mm height compensation, accommodating uneven terrain with slopes up to 5 degrees. Pad-mount options use pre-drilled anchor bolt patterns conforming to ISO 898-1 property class 8.8, enabling rapid deployment on existing concrete slabs or compacted gravel beds. Cable entry points are located at the base with IP68-rated gland plates, supporting up to 4×240 mm² copper conductors per phase for 480 VAC three-phase grid connection. The enclosure’s double-wall construction with 60 mm mineral wool insulation achieves a fire resistance rating of 60 minutes per EN 1363-1, meeting NFPA 855 requirements for outdoor energy storage systems. Thermal runaway propagation is mitigated through ceramic fiber separators between cells, with a venting system that directs gases to a safe discharge point at 2 meters height.
In oil and gas upstream operations, the Outdoor BESS Cabinet supports remote wellhead automation and electric submersible pump (ESP) load shifting. A typical installation at a Permian Basin site uses 300 kWh of storage to shave 150 kW peak demand during hydraulic fracturing operations, reducing diesel generator runtime by 40% and lowering fuel consumption by 12,000 liters annually. The cabinet’s IP65 rating withstands sandstorms and 95% relative humidity, while the -30°C low-temperature capability ensures reliable starting of 200 kW variable frequency drives in Arctic winter conditions. Integrated arc-fault detection per UL 1699B and ground fault monitoring per IEEE 1428 provide personnel safety in classified Zone 2 hazardous areas when paired with appropriate purge systems. For methane emission reduction, the cabinet enables generator-off operations for up to 6 hours per day, cutting Scope 1 emissions by 18 metric tons CO2e annually per unit.
Offshore wind farm operators deploy the cabinet for turbine auxiliary power backup and grid frequency regulation. A 500 kWh unit installed at a North Sea wind farm provides 2 MW of frequency response for 15 minutes, complying with DNV-GL-ST-0142 requirements for offshore energy storage. The cabinet’s salt-spray resistance exceeds 1,000 hours per ASTM B117 without coating degradation, critical for 20-year service life in marine environments. Vibration testing per IEC 60068-2-6 at 5-100 Hz with 2g acceleration ensures structural integrity during storm conditions. The modular design allows phased capacity additions as wind farm output grows, with each 100 kWh module adding 400 kg to the total weight of 3,500 kg fully loaded. Corrosion protection includes a three-layer coating system: 80 µm zinc-rich primer, 120 µm epoxy intermediate, and 60 µm polyurethane topcoat, validated by 2,000-hour salt spray testing per ISO 9227.
Mining operations use the cabinet for trolley-assist haul truck infrastructure and conveyor belt peak shaving. At a Chilean copper mine, a 400 kWh system reduces grid demand charges by 35% during afternoon peak hours, saving $180,000 annually in electricity costs. The cabinet operates at 4,500 meters altitude with derated power output of 8% per 1,000 meters above sea level, maintaining 92% round-trip efficiency at 3,000 meters. Dust ingress protection exceeds IP6X requirements, validated by 8-hour exposure to 2 kg/m³ silica dust per IEC 60529. The cabinet’s ground-mount design eliminates excavation in rocky terrain, with installation completed in 4 hours using a 5-ton crane and two technicians. Thermal management maintains battery temperature below 45°C even when ambient reaches 50°C, using variable-speed fans controlled by PID algorithms. For underground mining applications, the cabinet can be configured with explosion-proof enclosures meeting ATEX II 2G Ex d IIB T4 requirements, with pressure-relief panels rated for 10 kPa burst pressure.
Power generation plants integrate the cabinet for black start capability and renewable smoothing. A 200 kWh unit at a combined-cycle gas turbine facility provides 1 MW of black start power for 12 minutes, meeting NERC PRC-006 standards for grid restoration. The cabinet’s 0.5C continuous discharge rate supports 250 kW load for 2 hours, enabling gas turbine auxiliary systems to reach synchronous speed. In solar photovoltaic farms, a 500 kWh cabinet paired with 1 MW solar arrays achieves 95% self-consumption of generated energy, reducing curtailment losses by 18% annually. The cabinet’s Modbus interface integrates with plant DCS systems using IEC 61850 protocol, providing sub-20 millisecond response time for automatic generation control signals. For combined heat and power plants, the cabinet can be synchronized with steam turbine output, absorbing excess generation during low-demand periods and discharging during ramp events, improving overall plant efficiency by 3-5%.
Leading Top Union holds ISO 3834-2 certification for fusion welding of steel structures, ensuring every cabinet frame meets EN 1090-2 EXC3 execution class with weld quality verified by ultrasonic testing per ISO 17640. AWS D1.1 certified welders maintain 100% traceability for all load-bearing joints, with weld strength exceeding 480 MPa for S355J2+N steel plates. The cabinet’s enclosure undergoes 24-hour IP65 testing in an in-house chamber, with water spray at 12.5 L/min from 3 meters distance per IEC 60529. Material certificates per EN 10204 3.1 are provided for all steel components, galvanizing certificates per ASTM A123, and battery cell test reports per IEC 62619 from a UL-recognized test facility. Each battery module is subjected to 100% capacity testing at 0.5C charge/discharge rate, with acceptance criteria of minimum 98% of rated capacity at 25°C.
A 15,000 m² production line at the Suzhou factory is dedicated to energy storage enclosures, with annual capacity exceeding 2,000 cabinets. Each unit undergoes 100% functional testing including insulation resistance at 2,500 VDC per IEC 62109, dielectric withstand at 3,500 VAC for 60 seconds, and ground continuity below 0.1 ohm per UL 1741. A 5-year comprehensive warranty covers battery capacity retention above 80% and enclosure corrosion resistance, with optional 10-year extended warranty for offshore installations. Technical documentation includes 3D CAD models in STEP format, electrical single-line diagrams, and finite element analysis reports for wind load up to 180 km/h per ASCE 7-16. Site-specific thermal simulations using CFD modeling are provided by the engineering team, optimizing fan placement and airflow for ambient temperatures up to 55°C in desert installations. For seismic zones, reinforced frames compliant with IBC 2021 seismic design category D are offered, with base shear calculations verified by third-party structural engineers.
Global EPC firms specify Leading Top Union cabinets for projects requiring compliance with multiple international standards simultaneously. CE marking per EU 2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive is carried, with third-party type testing by TÜV Rheinland. For North American projects, UL 9540 listing for energy storage systems and NFPA 855 compliance documentation is provided. DNV-GL type approval for offshore applications is supported, including vibration, shock, and inclination testing per DNV-CP-0415. The quality management system is ISO 9001:2015 certified, with annual surveillance audits by SGS. Lead times average 8-12 weeks for standard configurations, with expedited 6-week delivery available for 100-200 kWh units. On-site commissioning support is provided within 48 hours for any global location, with remote monitoring via a cloud platform for real-time performance tracking and predictive maintenance alerts. For projects requiring battery second-life integration, repurposed LFP modules with 70-80% residual capacity are offered, tested and warranted for an additional 2,000 cycles at 60% depth of discharge.
| Parameter | Specification |
|---|---|
| Capacity Range | 100 - 500 kWh |
| Dimensions | Varies: 1200×800×2200mm to 2400×1200×2200mm |
| Protection | IP65 |
| Noise Level | < 65 dB at 1m |
| Operating Temp | -30°C to +50°C |
| Weight | 800 - 3,500 kg (loaded) |
Send us your requirements and we will respond within 24 hours with pricing and lead time.
