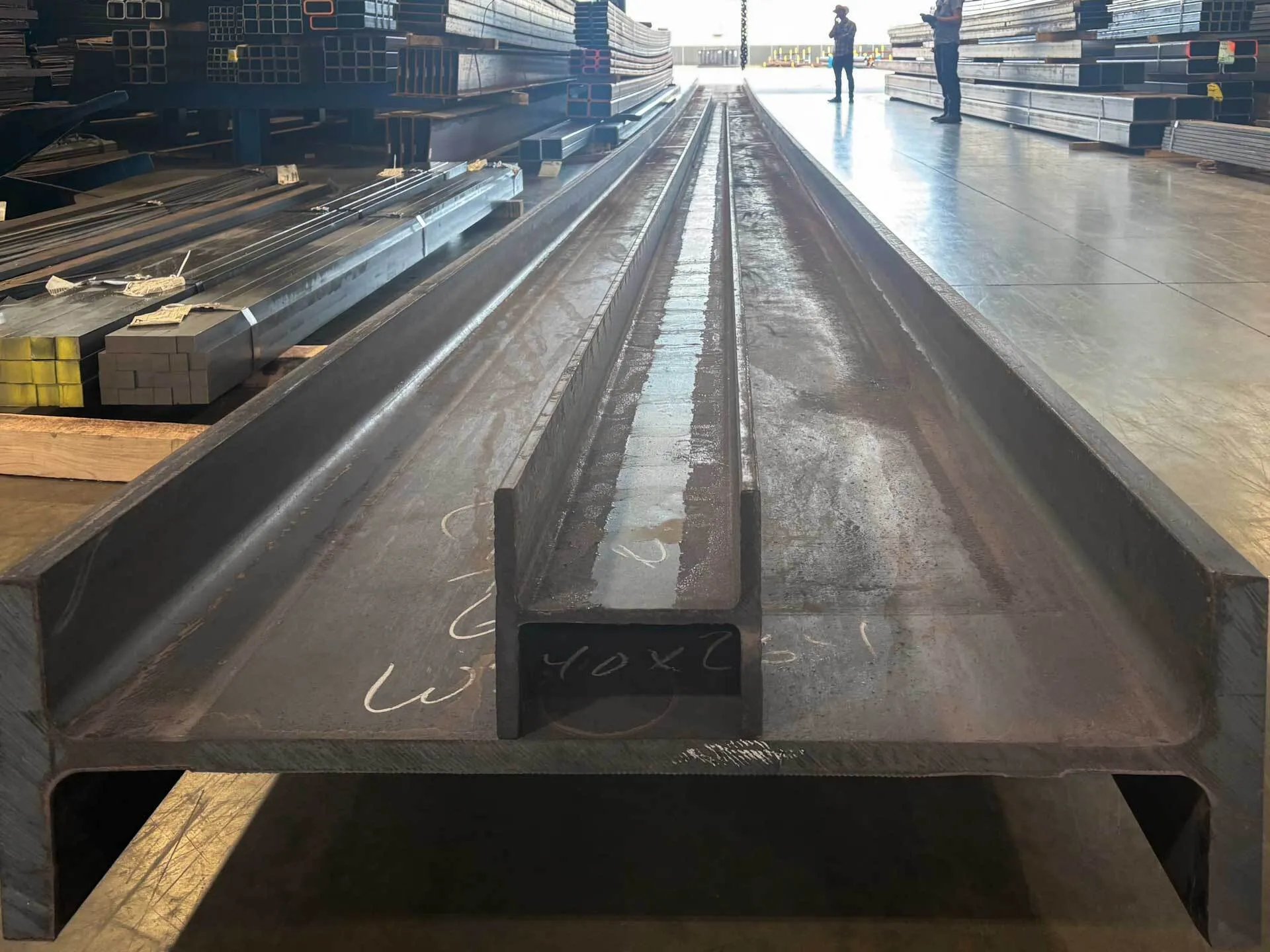

Crane Boom Fabrication

Product Overview

Crane boom fabrication demands precision engineering to withstand cyclic loading, fatigue, and extreme environmental conditions. High-strength quenched and tempered steels such as S690QL, S890QL, and S960QL per EN 10025-6 are commonly specified, offering yield strengths from 690 MPa to 960 MPa. This enables lighter booms with higher lifting capacities. The fabrication process begins with CNC plasma or laser cutting of plates up to 50 mm thick, achieving dimensional tolerances of ±0.5 mm for critical fit-up joints. Consistent weld gap control is ensured, reducing distortion and residual stress during subsequent welding operations.

Welding procedures are qualified under ISO 15614-1 and AWS D1.1, with submerged arc welding (SAW) used for longitudinal and circumferential butt welds on box-section booms. For lattice booms, flux-cored arc welding (FCAW) with E81T1-Ni1 electrodes provides high deposition rates and excellent impact toughness at -40°C. Preheating to 150-200°C, controlled interpass temperatures, and post-weld heat treatment (PWHT) when required ensure hydrogen crack resistance in these high-strength steels. All butt welds undergo 100% ultrasonic testing (UT) per ISO 17640, while fillet welds receive magnetic particle inspection (MPI) per ISO 17638. Straightness tolerance of L/1000 or better is verified using laser tracking systems on booms up to 20 meters in length. For example, a 15-meter boom must maintain a straightness deviation no greater than 15 mm along its entire span, a requirement validated by automated laser profilometry with 0.1 mm resolution. This level of precision is critical for ensuring smooth telescoping action in mobile crane applications and minimizing eccentric loading on boom sections during lifts.

Each boom section is designed to handle dynamic loads from 50 to 80 tons, with fatigue life calculations per EN 1993-1-9 (Eurocode 3) for detail categories up to 125 MPa. Box-section booms feature internal stiffeners and diaphragms at 1.5-meter intervals to prevent buckling under compressive loads. Lattice booms use circular or rectangular hollow sections welded at nodes with full penetration joints, achieving a strength-to-weight ratio optimized for mobile crane applications. Welding parameters are precisely controlled: for S960QL steel, heat input is limited to 1.0-1.5 kJ/mm to prevent heat-affected zone softening, while interpass temperatures are maintained below 250°C. Post-weld hydrogen removal is performed at 200-250°C for 2-4 hours when using hydrogen-controlled consumables with diffusible hydrogen content below 5 ml/100g. The fabrication facility operates under ISO 3834-2 quality system certification, ensuring traceability from raw material mill certificates to final dimensional reports. Compliance with EN 1090-2 EXC3 execution class for steel structures covers weld preparation, acceptance criteria, and surface treatment per ISO 8501-1 to SA 2.5 blast cleaning standard. For critical welds in tension zones, fracture mechanics assessments per BS 7910 are conducted to determine acceptable flaw sizes, with CTOD values typically exceeding 0.25 mm at -20°C for S890QL steel.

Applications & Industries

Crane booms serve critical lifting operations in offshore wind installation, where lattice booms up to 20 meters long are integrated into jack-up crane vessels. These booms must handle dynamic sea states with wave heights up to 3 meters, requiring fatigue design for 10^7 cycles per DNV-GL-ST-0378. For example, a 60-ton capacity boom on a wind turbine installation vessel must lift nacelles weighing 55 tons at a radius of 25 meters, with deflection limited to 50 mm under full load. S960QL steel booms reduce structural weight by 15-20% compared to S690QL, allowing higher payloads without exceeding vessel stability limits. All welds are classified as fatigue-critical per DNV-GL-C-401, with 100% UT and acceptance criteria for flaw sizes below 2 mm. In addition, bolted connections at boom joints are designed to ISO 898-1 property class 10.9, with preload tension controlled to 70% of yield strength using hydraulic torque wrenches calibrated to ±5% accuracy. This ensures consistent clamping force across all joints, preventing loosening under cyclic loading. For offshore installations, corrosion protection includes a three-coat epoxy system with 300 microns dry film thickness per NORSOK M-501, supplemented by sacrificial zinc anodes on submerged sections to provide cathodic protection for 25-year service life.

In the oil and gas sector, box-section booms are deployed on pedestal cranes for offshore platforms and FPSOs, operating in temperatures from -20°C to +50°C. These booms must meet API 2C specifications for offshore cranes, with design loads including hook load, wind load (up to 50 m/s), and dynamic factors of 1.25. A typical 80-ton capacity boom for a North Sea platform uses S890QL steel with a 16 mm wall thickness, achieving a boom weight of 12 tons while maintaining a safety factor of 1.5 against yield. Welding procedures are qualified for CTOD values above 0.25 mm at -10°C per BS 7448, ensuring brittle fracture resistance. Three-coat epoxy systems (300 microns DFT) per NORSOK M-501 provide 25-year service life in marine environments. For arctic applications, steel grades with guaranteed Charpy V-notch impact energy of 40 J at -40°C are specified, and welding consumables are selected to match base metal toughness. Preheating temperatures are increased to 200°C for thicknesses above 30 mm to mitigate hydrogen cracking risk, and post-weld heat treatment is mandatory for all butt welds in thicknesses exceeding 40 mm to relieve residual stresses below 80 MPa.

Mining and power generation industries rely on lattice booms for dragline excavators and coal-handling cranes, where abrasion and impact resistance are critical. Booms for electric rope shovels must withstand digging forces up to 200 kN, with lattice members fabricated from S690QL steel and welded using FCAW with 2% nickel content for low-temperature toughness. Chord straightness of 1 mm per meter and node alignment within 0.5 mm are achieved to ensure uniform load distribution across the structure. For thermal power plant cranes handling 40-ton coal buckets, booms are designed for 500,000 cycles with a maximum stress range of 100 MPa per EN 13001-3-1. NDT includes 100% MPI on all fillet welds and 10% UT on butt welds, with acceptance criteria per ISO 5817 level B for fatigue-loaded components. In mining environments, additional wear protection is applied: lattice members in high-impact zones are fitted with abrasion-resistant steel liners of 10 mm thickness, welded using low-hydrogen electrodes with a hardness of 400 HB. For coal-handling applications, booms are designed with self-cleaning features such as sloped surfaces and drainage holes to prevent material buildup, reducing maintenance intervals from monthly to quarterly. Fatigue life is verified through strain gauge testing on prototype booms, with measured stress ranges compared to FEA predictions to validate design assumptions within ±10% accuracy.

Why Choose Leading Top Union for Crane Boom Fabrication

ISO 3834-2, EN 1090-2 EXC3, and AWS D1.1 certifications are combined to deliver crane booms that meet the most stringent global standards. Welding engineers hold IWE (International Welding Engineer) qualifications per IIW guidelines, with over 15 years of experience in high-strength steel fabrication. A dedicated NDT team certified to ISO 9712 level II in UT, MPI, and radiography ensures 100% inspection coverage on all critical welds. The facility features a 20-meter CNC boring machine for machining boom end connections to ±0.1 mm tolerance, enabling precise alignment with crane turntables and jib sections. This eliminates field-fit issues that can delay project schedules by weeks. For example, a recent project for a European offshore crane manufacturer required 12 boom sections with end flange flatness within 0.2 mm across a 1.5-meter diameter, achieved using a custom-built hydraulic press and laser alignment system.

Complete traceability from steel mill to finished boom is offered, with material certificates per EN 10204 type 3.1 for all plates and sections. Each boom receives a unique serial number with a digital dossier containing weld maps, NDT reports, dimensional inspection records, and heat treatment charts. The quality management system is audited annually by TÜV SÜD and Lloyd's Register, covering process control for preheating, interpass temperature monitoring, and post-weld cooling rates. For projects requiring third-party verification, coordination with classification societies such as DNV, ABS, or CCS for witness testing and certification is standard. This reduces procurement risk and ensures compliance with project-specific technical specifications. For instance, a recent fabrication for a Middle East oil terminal required ABS approval of all welding procedures and NDT personnel, with weekly audits during production—a process completed without non-conformances. The facility also maintains a calibrated temperature-controlled storage area for welding consumables, with humidity below 60% and temperature between 18-25°C, ensuring electrode performance meets AWS A5.1 standards.

Lead time for a typical 60-ton box-section boom is 8-10 weeks from material procurement to final inspection, with rush orders possible in 6 weeks for approved designs. Free technical support is provided during the design phase, including finite element analysis (FEA) for stress concentration zones and weld optimization per EN 1993-1-8. After delivery, on-site welding supervision and NDT support for boom assembly at your facility are available. With over 200 crane booms fabricated since 2018 for clients in Europe, Southeast Asia, and the Middle East, the track record includes zero weld failures in service. For example, a fleet of 30 booms for a Singapore-based offshore contractor has operated continuously for five years in Southeast Asian waters with no fatigue cracks detected during annual inspections. Contact the engineering team with your load chart, boom length, and environmental conditions for a detailed fabrication proposal within 48 hours.
