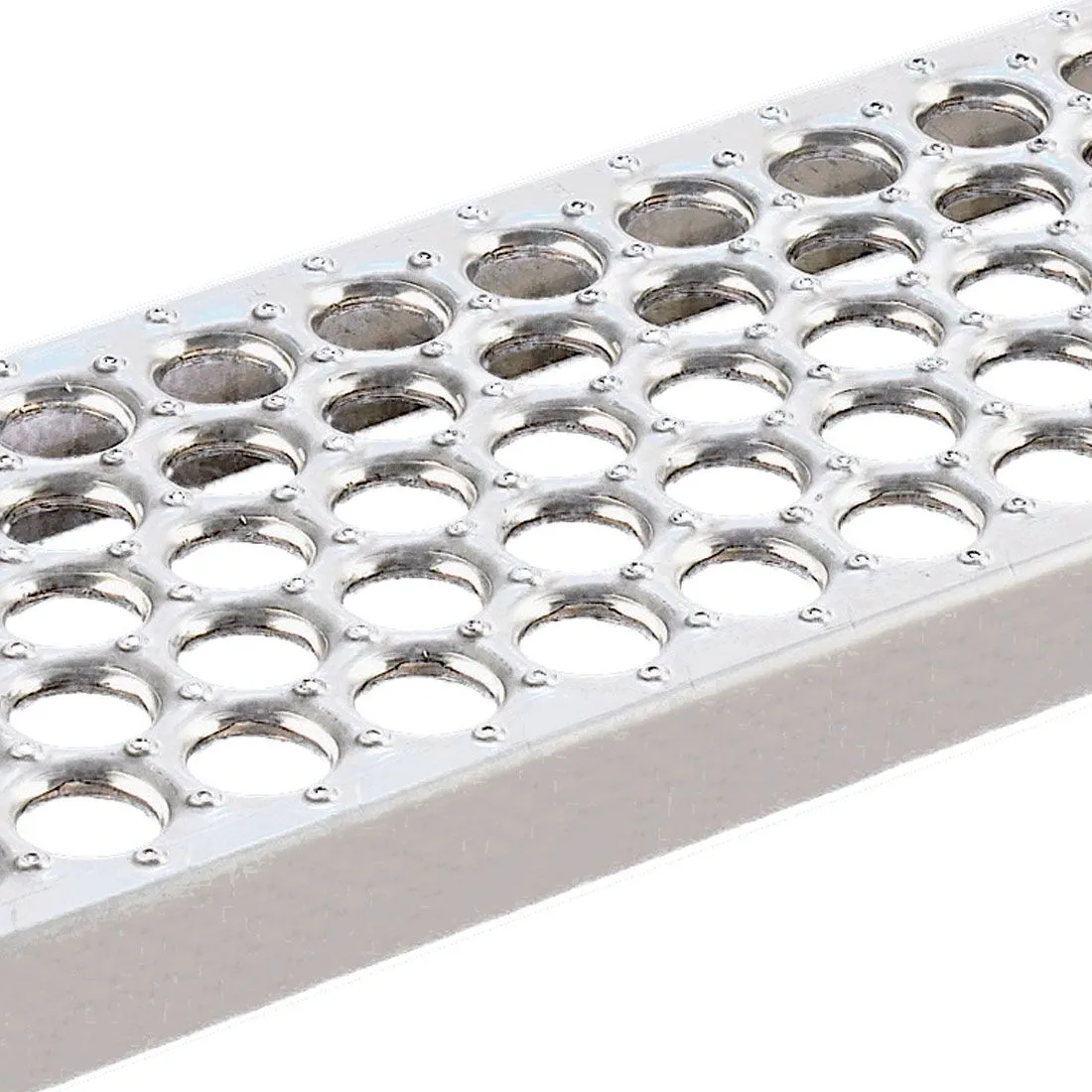

304 Stainless Steel Perf-O-Grip Grating

Product Overview

Leading Top Union’s 304 Stainless Steel Perf-O-Grip Grating is engineered for demanding environments where corrosion resistance, hygiene, and structural integrity are non-negotiable. Manufactured from Type 304 austenitic stainless steel (18/8 chromium-nickel ratio), this grating conforms to ASTM A240/A240M for flat-rolled product and ASTM A666 for structural applications. The diamond-shaped punched openings, measuring 46x16mm standard, provide a 62% open area for efficient drainage and debris passage while maintaining a slip-resistant surface. Each panel is fabricated with a mill finish (2B) or optional No.4 brushed surface, with thicknesses ranging from 2.0mm to 4.0mm. Standard panel sizes include 240x1220mm, 300x1220mm, and 400x2440mm, with custom dimensions available to meet specific project requirements. Load testing per ASME B56.1 confirms a concentrated load capacity of up to 480 kg on a 3mm thick panel at a 600mm span, ensuring reliable performance under heavy foot traffic and light industrial loads.

Corrosion Resistance and Material Properties

The 304 stainless steel composition offers excellent resistance to atmospheric corrosion, mild chemical exposure, and oxidizing environments, making it suitable for continuous service temperatures from cryogenic conditions down to -196°C up to 870°C. Unlike carbon steel alternatives, this grating requires no painting, galvanizing, or coating maintenance, reducing lifecycle costs by an estimated 35-50% over 20 years in corrosive settings. The non-magnetic property in the annealed condition is critical for applications near sensitive electronic equipment or magnetic separation processes, as verified by ASTM A342/A342M testing. Each panel is manufactured with a flatness tolerance of ±1.5mm per 600mm length and a twist tolerance of ±2.0mm per 300mm width, ensuring consistent installation across large decks and platforms. The open area design also minimizes wind uplift forces in outdoor installations, a key consideration for offshore and coastal projects.

Fabrication Quality and Safety Standards

Fabrication follows strict quality controls under our ISO 3834-2 certification for welding, with all cut edges deburred to eliminate sharp edges that could compromise safety or hygiene. The diamond pattern provides a coefficient of friction of 0.6-0.8 when tested per ASTM F1679, exceeding OSHA’s minimum slip-resistance standards for industrial walkways. For applications requiring enhanced drainage, the 46x16mm opening size allows passage of particles up to 15mm in diameter, reducing clogging in food processing or pharmaceutical wash-down areas. The grating’s fully recyclable nature at end of service life aligns with LEED v4.1 and BREEAM sustainability criteria, supporting green building certifications. Custom punching patterns are available for specialized flow rates or debris management, with minimum order quantities of 50 panels for non-standard configurations. Each batch is traceable via heat numbers and material test certificates per EN 10204 Type 3.1.

Applications & Industries

Food Processing and Pharmaceutical Environments

In the food processing and pharmaceutical industries, 304 Stainless Steel Perf-O-Grip Grating is specified for mezzanine floors, catwalks, and drainage covers where hygiene is paramount. The No.4 brushed finish provides a surface roughness of Ra 0.4-0.8μm, meeting FDA 21 CFR 177.2600 requirements for food contact surfaces and EHEDG guidelines for cleanability. For a poultry processing facility in Thailand, we supplied 1,200 panels of 3.0mm thick grating with custom 400x2440mm dimensions, supporting a live load of 5 kN/m² per EN 1991-1-1 while withstanding daily high-pressure wash-downs at 80°C with chlorine-based sanitizers. The non-magnetic property prevents interference with metal detectors used for contaminant detection, a critical requirement in HACCP-compliant environments. The 62% open area ensures rapid drainage of wash water and organic debris, reducing bacterial growth and meeting USDA sanitation standards for meat and poultry plants.

Offshore and Petrochemical Performance

Offshore oil and gas platforms and petrochemical facilities rely on this grating for walkways, stair treads, and equipment platforms in corrosive marine atmospheres. The 304 alloy resists pitting and crevice corrosion in chloride environments up to 200 ppm, as validated by ASTM G48 Method A testing. For a North Sea offshore wind farm project, we delivered 800 panels of 4.0mm thick grating with 300x1220mm dimensions, designed to withstand wind loads of 55 m/s per DNV-OS-J101 and wave splash zone exposure. The diamond pattern provides slip resistance even when coated with oil or seawater, achieving a pendulum test value of 45+ per EN 13036-4. In petrochemical plants handling acetic acid, citric acid, and dilute sulfuric acid (up to 10% concentration at 50°C), the grating maintains structural integrity with a corrosion rate below 0.1 mm/year per ASTM G31. The mill finish surface simplifies inspection for stress corrosion cracking during routine NDT per ASME Section V.

Mining, Power Generation, and Marine Applications

Mining and power generation applications benefit from the grating’s temperature resistance and load-bearing capacity. In coal-fired power plants, it is used for turbine deck platforms and boiler access areas where ambient temperatures reach 200°C, with the 304 alloy retaining 85% of its room-temperature yield strength at 300°C per ASME Section II Part D. For a copper mine in Chile, we fabricated 600 panels with 2.5mm thickness and 240x1220mm dimensions, supporting a concentrated load of 350 kg on a 500mm span for conveyor walkways. The grating’s resistance to ammonium nitrate-based explosives and acidic mine drainage (pH 3-5) extends service life to 15+ years, compared to 3-5 years for painted carbon steel. In shipbuilding, the grating meets IMO MSC.1/Circ.1432 requirements for non-combustible materials and is used for engine room platforms and accommodation ladders. The 304 alloy’s low magnetic permeability (<1.05 μ at 200 Oe per ASTM A342) is essential for degaussing systems on naval vessels.

Why Choose Leading Top Union for 304 Stainless Steel Perf-O-Grip Grating

Certified Quality Assurance Systems

Leading Top Union’s ISO 3834-2 certification ensures that all welding processes for our 304 Stainless Steel Perf-O-Grip Grating meet the highest international quality standards for fusion welding of metallic materials. Our EN 1090-2 EXC3 certification further guarantees that fabrication, including cutting, punching, and edge finishing, conforms to Execution Class 3 requirements for structural steel components in demanding applications. This means every panel is produced with documented weld procedures (WPS), welder qualifications (WPQ), and non-destructive testing (NDT) per ISO 17635, including visual inspection (ISO 17637) and dye penetrant testing (ISO 3452-1) on 10% of all welds. Our AWS D1.1 certification adds a third layer of quality assurance for structural welding, particularly for custom fabrications requiring fillet welds or full-penetration joints. These certifications are verified by third-party auditors and accepted by major EPC firms in oil and gas, power, and marine sectors globally.

Comprehensive Technical Documentation and Testing

We provide comprehensive technical documentation with every order, including material test certificates per EN 10204 Type 3.1, dimensional inspection reports with ±1.0mm tolerance verification, and load test data per ASME B56.1 or EN 1991-1-1. Our in-house testing lab performs corrosion resistance checks per ASTM A262 Practice C (Huey test) for intergranular corrosion susceptibility and hardness testing per ASTM E18 on each production batch. For projects requiring specific surface finishes, we offer No.4 brushed with Ra 0.4-0.8μm or 2B with Ra 0.1-0.5μm, verified by profilometer per ISO 4287. Custom panel sizes up to 1500x3000mm are available with a lead time of 10-15 working days for standard orders, and 20-25 working days for complex configurations with non-standard hole patterns or thicknesses. Our quality management system includes 100% visual inspection of every panel before packing, with edge protection and interleaving paper for No.4 finishes to prevent surface damage during transit.

Production Capacity and Global Delivery Capability

Our Suzhou factory operates with a production capacity of 5,000 panels per month for 304 stainless steel grating, supported by automated CNC punching machines with ±0.2mm positional accuracy and hydraulic shears with ±0.5mm cutting tolerance. We maintain a stock of 200 tons of 304 stainless steel coils from certified mills (POSCO, Baosteel, and TISCO) with full traceability to ASTM A240/A240M. For urgent projects, we offer a 7-day express service for standard sizes and thicknesses, with air freight options to global ports including Rotterdam, Houston, and Singapore. Our engineering team provides free load calculation reports per EN 1993-1-1 or ASME B56.1, including deflection analysis for spans up to 1200mm. We have successfully delivered over 50,000 panels to 30+ countries, with reference projects including the Shell Prelude FLNG facility, the Ørsted Hornsea offshore wind farm, and the Saudi Aramco Jazan refinery. Contact our technical sales team at sales@leadingtopunion.com for a quotation with material certification and load test data.
