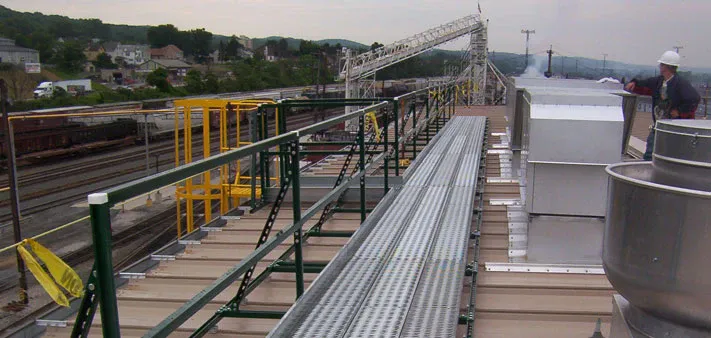

Grip Strut Grating for Roof Walkways

Product Overview

Grip Strut Grating for roof walkways is a structural safety solution engineered for permanent elevated access in industrial and commercial facilities. Manufactured from carbon steel, galvanized steel, stainless steel (304/316L), or aluminum (5083-H116), these gratings feature a diamond-shaped punched hole pattern measuring 46x16mm standard, which provides a slip-resistant surface exceeding OSHA 1910.22 requirements for walking-working surfaces. The self-cleaning open design prevents debris, ice, and water accumulation, maintaining safe traction in all weather conditions. Available in thicknesses from 2.0mm to 5.0mm, with standard panel sizes including 240x1220mm, 300x1220mm, 400x2440mm, and 600x2440mm, these gratings can support concentrated loads up to 500 kg at a 600mm span for 3mm thickness, verified through finite element analysis per EN 1993-1-1 (Eurocode 3).

The structural integrity of Grip Strut Grating is validated through rigorous testing to ASTM E119 fire resistance standards and ISO 9001:2015 quality management protocols. For roof walkway applications, the grating's lightweight aluminum option (density 2.7 g/cm³) reduces dead load by up to 60% compared to steel alternatives, critical for retrofitting existing roofs with limited load capacity. The hot-dip galvanized surface treatment, applied per ASTM A123/A123M, provides a minimum zinc coating of 85 microns for carbon steel, ensuring corrosion resistance in outdoor environments with UV exposure and temperature ranges from -40°C to 120°C. Stainless steel grades 304 and 316L are available for coastal or chemical plant installations where chloride resistance is required, with 316L offering pitting resistance equivalent number (PREN) above 25.

Integration with Roof Support Systems

Grip Strut Grating is designed to integrate seamlessly with standard roof walkway support systems, including fixed and adjustable pedestals, base plates, and transition plates. The grating's bearing bar spacing of 46mm center-to-center ensures compatibility with industry-standard clips and fasteners, reducing installation time by approximately 30% compared to custom solutions. Each panel is manufactured with a maximum manufacturing tolerance of ±1.5mm on length and width per ISO 2768-m, ensuring consistent fit across multiple panels. For projects requiring specific load ratings, certified load tables are provided based on span and thickness combinations, with safety factors of 1.5 for static loads and 2.0 for dynamic loads per ASME B30.20 guidelines. The open area of 62% allows for natural drainage and ventilation, preventing ponding water that can lead to roof membrane degradation.

Applications & Industries

In the oil and gas sector, Grip Strut Grating is deployed on refinery roof walkways for access to pressure vessels, heat exchangers, and flare stacks. At a major Gulf Coast refinery, 3mm galvanized steel gratings with 600mm span supported concentrated loads of 450 kg during maintenance operations, exceeding API 650 requirements for roof access. The self-draining design prevents hydrocarbon and water accumulation, reducing slip hazards in environments with frequent rain or washdowns. For offshore platforms, 316L stainless steel gratings with 4mm thickness and 400x2440mm panels are supplied, tested to DNV-OS-E101 for marine environments, providing corrosion resistance in salt spray conditions with a minimum 5000-hour salt spray test per ASTM B117.

Offshore Wind and Mining Applications

Offshore wind energy installations utilize aluminum Grip Strut Grating for turbine nacelle and transition piece walkways, where weight reduction is critical. A recent project for a 8MW offshore wind farm in the North Sea used 5083-H116 aluminum gratings with 2.5mm thickness and 300x1220mm panels, reducing total walkway weight by 55% compared to steel, while maintaining a load capacity of 350 kg at 500mm span. The grating's UV resistance and non-sparking properties meet DNV-GL-ST-0378 standards for offshore structures. For mining operations, heavy-duty 5mm carbon steel gratings with hot-dip galvanizing are used on conveyor gallery walkways and crusher house roofs, handling concentrated loads up to 700 kg at 800mm span, with a safety factor of 2.5 per AS 1657-2018 for industrial platforms.

Power Generation and Petrochemical Installations

Power generation facilities, including combined cycle gas turbine plants and coal-fired units, rely on Grip Strut Grating for boiler roof access and turbine deck walkways. At a 600MW coal plant in the Midwest, 3mm galvanized gratings with 600x2440mm panels provided safe access for 50 workers during annual maintenance, withstanding temperatures up to 80°C from adjacent steam lines. The grating's open area of 62% allows for heat dissipation, preventing thermal stress on the roof membrane. In petrochemical plants, 304 stainless steel gratings with 4mm thickness are supplied for reactor roof walkways, tested to ASTM G48 for pitting resistance in chloride environments. For shipbuilding applications, 2.5mm aluminum gratings are used on LNG carrier tank roofs, meeting Lloyd's Register requirements for non-slip surfaces and fire resistance per IMO FTP Code Part 2.

Why Choose Leading Top Union for Grip Strut Grating for Roof Walkways

Leading Top Union (领拓互联) delivers Grip Strut Grating manufactured under ISO 3834-2 certification for welding quality, EN 1090-2 EXC3 for structural steel execution, and AWS D1.1 for welding procedures. The Suzhou facility operates with CNC punching presses achieving hole pattern tolerances of ±0.2mm, ensuring consistent slip resistance across every panel. For roof walkway projects, certified load test reports per EN 1993-1-1 and ASTM E119 are provided, with data traceable to material heat numbers and production batches. Quality control includes 100% visual inspection per ISO 8501-1 for surface preparation and magnetic particle testing per ASTM E709 for weld integrity on stainless steel and aluminum gratings.

Custom Fabrication and Engineering Support

Custom fabrication services are available for non-standard roof walkway configurations, including curved gratings for domed roofs, cutouts for pipe penetrations, and tapered panels for sloped surfaces up to 15 degrees. The engineering team provides structural calculations per ASCE 7-22 for wind and snow loads, ensuring compliance with local building codes for roof access systems. For international projects, gratings are supplied with CE marking per EN 1090-1 and CPR 305/2011, along with material certificates per EN 10204 Type 3.1. Lead times for standard sizes are 3-4 weeks from order confirmation, with expedited production available for emergency maintenance projects. Over 50,000 square meters of Grip Strut Grating have been supplied to EPC firms in 30 countries, with a 98.5% on-time delivery rate over the past five years.

Installation Guidance and Maintenance Recommendations

Technical support includes on-site installation guidance for roof walkway systems, covering proper fastener torque values (typically 20-30 Nm for M8 clips per EN 1993-1-8) and expansion gap requirements (3-5mm per 6m panel length). Maintenance recommendations are provided based on environmental conditions, including annual inspections for galvanized coatings in industrial atmospheres per ASTM A123/A123M. For stainless steel gratings in coastal environments, passivation per ASTM A967 is recommended to maintain corrosion resistance. Pricing is competitive for bulk orders of 500+ panels, with volume discounts up to 15% for carbon steel and 10% for aluminum. Contact the technical sales team at info@leadingtopunion.com for project-specific load calculations, custom sizes, and certification packages tailored to roof walkway requirements.
