Grip Strut Grating for Mining Walkways

Product Overview

Grip Strut Grating for mining walkways is engineered to meet the rigorous demands of underground and surface mining environments where safety, durability, and operational continuity are non-negotiable. Manufactured from heavy-gauge carbon steel, galvanized steel, stainless steel, or aluminum, this grating features a unique diamond-shaped punched opening pattern (46x16mm standard) that provides self-cleaning properties critical for preventing the accumulation of ore dust, mud, and debris. The raised traction pattern, formed by the punched hole edges, delivers a slip-resistant surface that maintains grip even when boots are wet or covered in fine particulates, exceeding the slip resistance requirements of ASTM F1637 for industrial walkways. Load capacity is verified through finite element analysis and physical testing, with a 3mm thick panel spanning 600mm supporting up to 500 kg concentrated load, suitable for personnel access and light equipment transit in compliance with OSHA 1910.23 and MSHA 56.11001 standards.

Self-Cleaning Design and Material Options

The open area of Grip Strut Grating, typically 40-60% depending on material thickness and hole pattern, allows light and ventilation to pass through elevated walkways, reducing the risk of confined space hazards and improving visibility in low-light mining tunnels. For applications involving acidic mine water exposure, hot-dip galvanized surface treatment per ASTM A123 provides a zinc coating thickness of 85-100 microns on carbon steel, offering corrosion resistance in pH ranges from 5.5 to 12.0 at ambient temperatures. Stainless steel grades 304L or 316L are available for environments with higher chloride concentrations, such as those encountered in copper leaching operations or offshore mining platforms. Standard panel sizes include 240x1220mm, 300x1220mm, 400x2440mm, and 600x2440mm, with custom dimensions fabricated to within ±1.5mm tolerance to match existing support structures without field modification.

Load Capacity and Structural Validation

Material thickness options range from 2.0mm to 5.0mm, with the 4.0mm and 5.0mm variants recommended for heavy-traffic zones such as conveyor access platforms, crusher feed areas, and maintenance gantries where dynamic loads from vibrating equipment and personnel movement are common. The grating's structural integrity is validated through load deflection testing per ANSI/NAAMM MBG 531, with maximum deflection limited to L/200 under design load to prevent tripping hazards and ensure long-term fatigue resistance. For mining walkways spanning up to 1200mm between supports, the 5.0mm thick grating in galvanized steel achieves a uniform load capacity exceeding 7.5 kN/m², accommodating concentrated loads from tools, replacement parts, and up to three workers simultaneously. Each panel is manufactured with serrated edges to prevent slipping during installation and is compatible with standard hold-down clips or welding for permanent attachment to steel structures.

Applications & Industries

Underground Hard-Rock Mining Performance

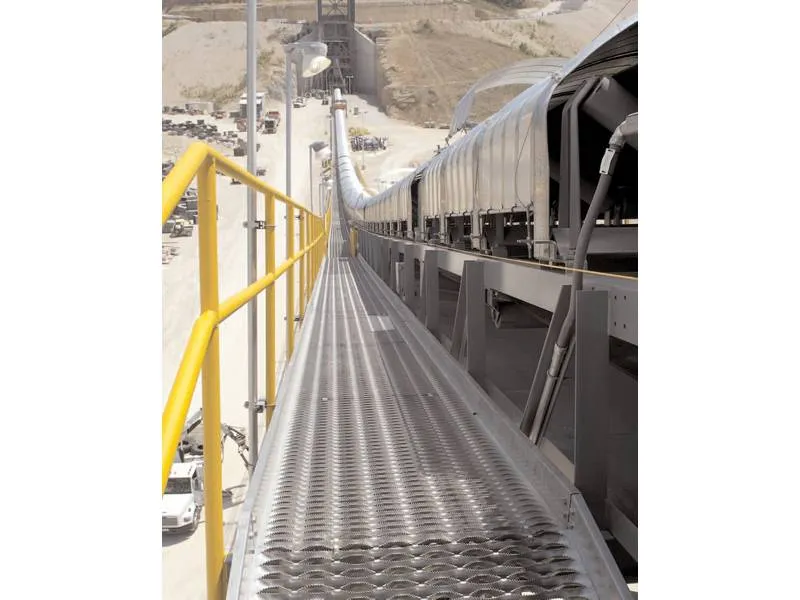

In underground hard-rock mining operations, Grip Strut Grating is deployed as primary walkway material for access routes to drilling jumbos, mucking equipment, and ventilation shafts where mud, water, and fine rock dust are constant challenges. The self-cleaning hole pattern prevents material buildup that can add dead load to structures and create slip hazards, reducing maintenance intervals by up to 60% compared to solid plate or checker plate alternatives. For example, in a copper mine in Chile with 800mm wide walkways spanning 900mm between steel beams, 4.0mm thick galvanized grating has demonstrated a service life exceeding 8 years in environments with pH 4.5 mine water, while requiring only annual visual inspection per ISO 9223 corrosion classification. The open area also allows methane and other gases to dissipate naturally, supporting compliance with MSHA ventilation requirements in gassy mines.

Surface Mining and Open-Pit Applications

Surface mining operations, including open-pit coal, iron ore, and gold mines, utilize Grip Strut Grating for elevated walkways on draglines, shovels, and conveyor transfer towers where exposure to rain, snow, and abrasive dust is continuous. The raised traction pattern provides slip resistance coefficient values of 0.6 or higher when tested per ASTM E303, exceeding the 0.5 minimum recommended for industrial wet surfaces. In a gold mine in Nevada with annual precipitation of 300mm, 3.0mm thick aluminum grating (6061-T6 alloy) is specified for walkways on leach pad structures due to its corrosion resistance in cyanide solution environments and weight reduction of 40% compared to steel, simplifying installation on existing structural frames. Load capacity for these applications is typically designed for 4 kPa uniform live load plus 1.5 kN concentrated load per EN 1991-1-1, with deflection limits of L/150 for non-critical access and L/200 for primary egress routes.

Mineral Processing and Offshore Mining Use

Beyond traditional mining, Grip Strut Grating is widely adopted in mineral processing plants, including concentrators, smelters, and refineries, where walkways must withstand chemical exposure, high temperatures, and heavy equipment loads. In a copper smelter in Zambia, 5.0mm thick stainless steel 316L grating is installed on furnace access platforms where ambient temperatures reach 60°C and sulfuric acid mist is present, with the grating maintaining structural integrity at temperatures up to 400°C for short-term exposure during furnace maintenance. The open area design reduces wind load on elevated structures in open-pit mines and processing plants, a critical factor in regions subject to high winds or cyclones. For offshore mining support vessels and subsea mining equipment platforms, aluminum grating with marine-grade 5083-H116 alloy is specified to meet DNV-GL structural requirements, with corrosion resistance tested per ASTM B117 salt spray for 1000 hours without red rust formation.

Why Choose Leading Top Union for Grip Strut Grating for Mining Walkways

ISO-Certified Manufacturing and Quality Control

Leading Top Union (领拓互联) manufactures Grip Strut Grating in a Suzhou facility under ISO 3834-2 certification for welding quality management, ensuring that all load-bearing joints and attachments meet the stringent requirements of EN 1090-2 EXC3 execution class for structural steel components. The production process includes automated punching and shearing with CNC-controlled tolerances of ±0.5mm on hole placement and ±1.0mm on overall panel dimensions, guaranteeing consistent fit with existing support structures without field modification. Each batch of grating is subjected to mechanical testing per ASTM A370 for tensile strength, yield point, and elongation, with carbon steel grades achieving minimum 250 MPa yield strength and 400 MPa tensile strength for 3.0mm and thicker panels. For mining applications requiring third-party verification, material test certificates (EN 10204 Type 3.1) and load test reports traceable to specific production lots are provided.

Custom Engineering and Corrosion Protection

The technical team works directly with procurement engineers and project managers at global EPC firms to develop custom grating solutions that address specific mining walkway challenges, such as non-standard spans, curved platforms, or integration with existing handrail systems. Hot-dip galvanizing per ASTM A123 with minimum coating thickness of 85 microns for 3.0mm steel is offered, verified by magnetic thickness gauge at three points per panel, ensuring corrosion protection in acidic mine water environments down to pH 4.0. For stainless steel orders, passivation treatment per ASTM A967 is applied to remove free iron and enhance chromium oxide layer formation, reducing pitting corrosion risk in chloride-rich mining environments. Lead times for standard sizes are 15-20 working days from order confirmation, with expedited production available for emergency replacements in active mining operations.

Prefabricated Modules and Global Logistics

With AWS D1.1 certified welders on staff, Leading Top Union can integrate Grip Strut Grating panels into prefabricated walkway modules, complete with structural supports, handrails, and toe plates, reducing on-site installation time by up to 40% for large-scale mining projects. The quality management system includes 100% dimensional inspection on each panel, with records maintained for 10 years for traceability in compliance with ISO 9001:2015 requirements. For mining operations in remote locations, packaging in weather-resistant crates with desiccant packs and edge protectors is offered, preventing damage during sea freight or overland transport. Contact the engineering team at info@leadingtopunion.com with your span length, load requirements, and environmental conditions for a technical proposal and load capacity calculation specific to your mining walkway application.
