Grip Strut Grating for Power Plant Walkways

Product Overview

Grip Strut Grating for power plant walkways is engineered to meet the rigorous demands of thermal and combined-cycle facilities where safety, thermal stability, and drainage are non-negotiable. Manufactured from carbon steel, galvanized steel, stainless steel (304/316L), or aluminum, these gratings feature a diamond-shaped punched hole pattern (46x16mm standard) that provides over 60% open area for immediate steam and condensate drainage. The serrated surface, formed by the punched edges, delivers a coefficient of friction exceeding 0.8 under wet conditions, exceeding OSHA 1910.22 slip-resistance requirements. Available in thicknesses from 2.0mm to 5.0mm, standard panel sizes include 240x1220mm, 300x1220mm, 400x2440mm, and 600x2440mm, with custom dimensions up to 1500x6000mm for large boiler platforms. Load capacity reaches 500 kg concentrated load at 3mm thickness over a 600mm span, verified per ISO 14122-3:2016 for industrial stairways and walkways.

Material Selection for Power Plant Environments

Material selection is critical for power plant environments. Carbon steel with hot-dip galvanizing per ASTM A123 provides corrosion resistance in dry interior areas near control rooms, while stainless steel 316L is specified for zones exposed to cooling tower drift or chemical injection points. Aluminum alloy 6061-T6 offers a lightweight alternative for elevated turbine deck walkways, reducing structural loading by up to 40% compared to steel. All materials maintain dimensional stability within ±1.5mm per linear meter under thermal cycling from -20°C to 400°C, ensuring panels remain flat and secure even near boiler casings or steam lines. The open design prevents accumulation of combustible dust or oil residues, meeting NFPA 85 requirements for boiler and combustion system safety. Each panel is manufactured with precision-punched holes that eliminate sharp burrs through a secondary deburring process, achieving a smooth edge radius of 0.5mm minimum per ISO 13715.

Surface Treatments for Zone-Specific Performance

Surface treatments are tailored to specific power plant zones. Hot-dip galvanizing per ASTM A123 creates a zinc-iron alloy layer 85-100 microns thick, providing 20+ years of service in indoor environments with relative humidity below 80%. For outdoor coal yard walkways or flue gas desulfurization areas, a duplex system of hot-dip galvanizing plus epoxy-polyester powder coating (minimum 120 microns total) resists pH levels from 2.5 to 12.0, as encountered in scrubber chemical spills. Stainless steel panels receive a mill finish with 2B surface roughness (Ra ≤ 0.5 microns) for easy cleaning of chemical residues. Load testing follows EN 1990:2002 (Eurocode 0) with a safety factor of 1.5 for serviceability and 2.0 for ultimate limit states. The diamond pattern allows unimpeded passage of steam at temperatures up to 180°C and condensate at 60°C, preventing water pooling that could cause slip hazards or microbial growth in cooling tower basins.

Applications & Industries

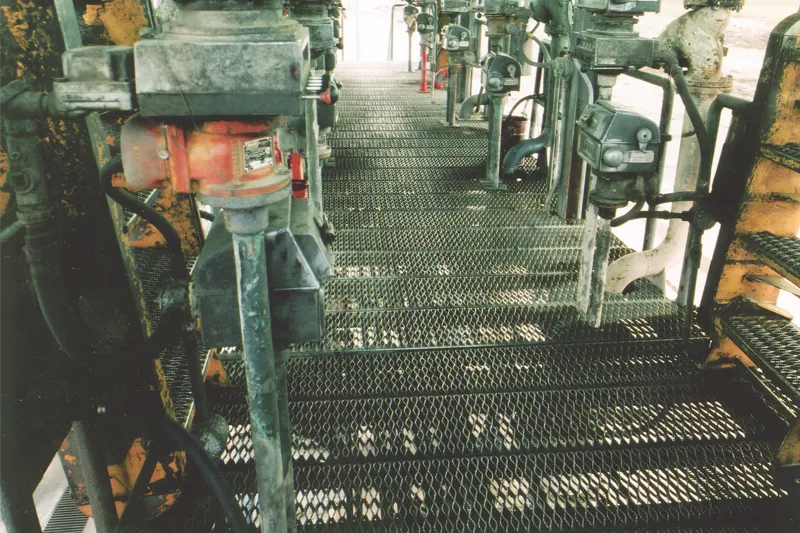

In coal-fired and natural gas power plants, Grip Strut Grating is deployed on boiler operating floors where temperatures reach 50-60°C ambient and steam leaks are common. The open area of 46x16mm diamond holes allows steam to vent upward while condensate drains downward at a rate of 0.5 liters per second per square meter, preventing slippery conditions. On turbine deck walkways, the grating supports maintenance tool carts weighing up to 300 kg and technicians carrying portable diagnostic equipment. The anti-slip surface, with a coefficient of friction of 0.85 when wet per ASTM F1679, reduces fall risks during steam turbine overhauls that occur every 3-5 years. Panels are installed with self-tapping stainless steel clips (grade 316) that allow rapid removal and replacement within 15 minutes per square meter, minimizing downtime during scheduled outages. Load capacities are verified at 500 kg concentrated load for 3mm thick carbon steel panels over 600mm spans, with deflection limited to 2mm under service load per ISO 14122-3.

Combined Heat and Power and Biomass Applications

Beyond conventional power generation, these gratings serve combined heat and power (CHP) facilities and biomass plants where corrosive ash and moisture are present. In CHP plants, walkways near heat recovery steam generators (HRSGs) experience thermal cycling from 10°C to 250°C during startup and shutdown cycles. Stainless steel 316L panels with 2.5mm thickness maintain structural integrity through 10,000+ thermal cycles without fatigue cracking, as validated by finite element analysis per ASME BPVC Section VIII Division 2. The diamond pattern prevents ash accumulation from biomass combustion, with self-cleaning action during steam purges. For offshore wind farm substations, aluminum 6061-T6 grating (3.0mm thick) provides corrosion resistance in marine environments with salt spray exposure per ASTM B117, achieving 1,000+ hours without red rust. Load testing for these applications follows DNV-GL-OS-E101 for offshore structures, with safety factors of 1.5 for live loads and 1.2 for environmental loads.

Petrochemical and Nuclear Power Plant Specifications

In petrochemical and refinery power plants, Grip Strut Grating is specified for walkways above amine treatment units and sulfur recovery areas where hydrogen sulfide (H2S) concentrations reach 50-100 ppm. Stainless steel 316L with electropolished finish (Ra ≤ 0.3 microns) resists sulfide stress corrosion cracking per NACE MR0175/ISO 15156. The open design allows gas dispersion, preventing accumulation of heavier-than-air vapors. For nuclear power plant auxiliary buildings, grating panels are manufactured from carbon steel with hot-dip galvanizing per ASTM A123 and painted with epoxy coating (300 microns dry film thickness) to meet ANSI N45.2.6 cleanliness standards. Load capacities for nuclear applications are derated by 25% to account for seismic events, with panels tested to withstand 0.5g horizontal acceleration per IEEE 344. The diamond pattern provides drainage of decontamination solutions during maintenance, with flow rates exceeding 2 liters per second per square meter for 5.0mm thick panels. Each panel is serialized and traceable to heat number and mechanical test certificate per EN 10204 Type 3.1.

Why Choose Leading Top Union for Grip Strut Grating for Power Plant Walkways

Leading Top Union (领拓互联) delivers Grip Strut Grating manufactured under ISO 3834-2 quality management for welding and EN 1090-2 EXC3 execution class for structural steel components. The Suzhou facility operates with CNC punching presses achieving hole position tolerances of ±0.3mm and flatness within 1mm per 1000mm length per EN 10029 Class A. Every production batch undergoes mechanical testing per ASTM A370 for tensile strength (minimum 370 MPa for carbon steel) and yield point (minimum 240 MPa). For stainless steel grades, intergranular corrosion resistance is verified per ASTM A262 Practice E, ensuring no cracking after 24-hour exposure to boiling copper sulfate solution. The hot-dip galvanizing line maintains zinc bath temperature at 445-455°C per ASTM A123, achieving coating thickness of 85-100 microns on 3.0mm panels. Each panel is inspected with a magnetic thickness gauge per ISO 2178, with 100% coverage for critical power plant orders.

Engineering Support and Load Calculation Services

The technical team provides load calculation reports per EN 1990:2002 and ISO 14122-3:2016, including deflection analysis for spans up to 1200mm. For power plant walkways supporting heavy maintenance equipment, 5.0mm thick carbon steel panels are offered with concentrated load capacity of 800 kg over 600mm spans, with deflection limited to 3mm. Custom panel sizes up to 1500x6000mm are supplied with hole patterns optimized for specific drainage requirements—for example, 30x60mm diamond openings for high-condensate areas near cooling towers. All panels are edge-banded with 25x25mm angle frames per EN 1090-2, welded with GMAW process using ER70S-6 filler wire for carbon steel or ER316L for stainless steel. Weld quality is verified by visual inspection per ISO 5817 Level B and dye penetrant testing per ISO 3452 for critical applications. Quality documentation includes material certificates per EN 10204 Type 3.1, dimensional inspection reports, and load test certificates traceable to the ISO 9001:2015 certified quality system.

Global Delivery and Project Support

For global EPC firms and power plant operators, just-in-time delivery is offered with lead times of 4-6 weeks for standard sizes and 8-10 weeks for custom configurations. Packaging for export includes wooden crates per ISPM 15 with internal bracing to prevent panel movement during transit, and each crate is labeled with project-specific tags including material grade, thickness, and heat number. Installation drawings are provided in AutoCAD and Revit formats, including clip spacing (typically 600mm centers) and edge support details per manufacturer specifications. After-sales support includes on-site inspection during installation for orders over 500 panels, with a technical representative available within 48 hours for any field issues. With over 15 years of experience supplying power generation projects in Southeast Asia, the Middle East, and Africa, the specific requirements of IEC and IEEE standards are well understood. Contact the engineering team at info@leadingtopunion.com for load calculations and project-specific pricing for your next power plant walkway project.
