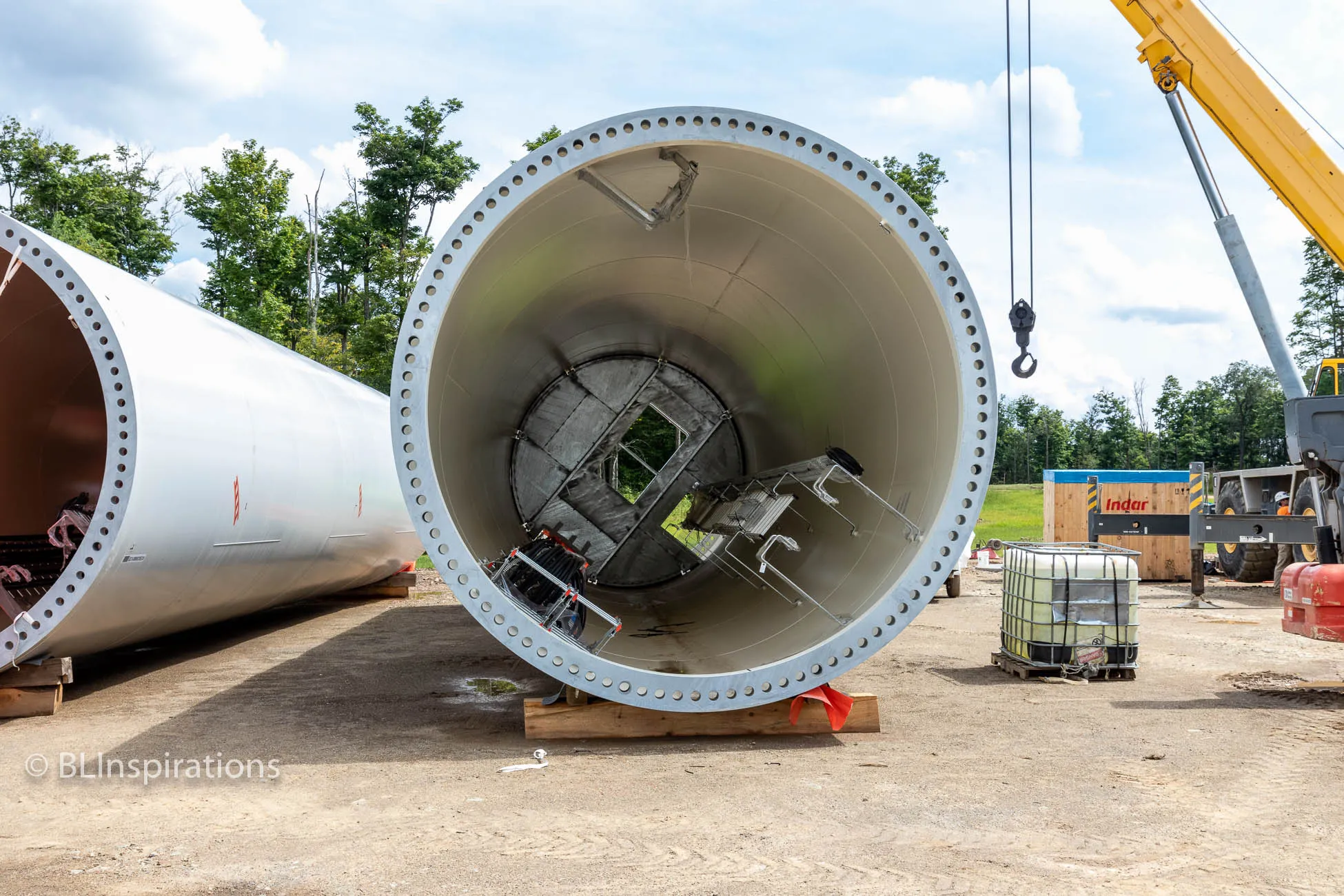

J-tube and cable protection system fabrication for offshore wind foundations. We manufacture J-tubes, I-tubes, bell mouths, and cable pull-in systems that protect subsea power cables during installation and throughout the wind farm operational life.
EN 1090-2 EXC3/EXC4
Single Piece up to 80T
NDT 100% Inspection
Offshore Grade
J-tube and cable protection systems from Leading Top Union are engineered for the demanding conditions of offshore wind, oil and gas, and subsea power transmission. Manufactured from S355J2 structural steel or duplex stainless steel (e.g., UNS S31803), these systems range from 300mm to 800mm in diameter with wall thicknesses of 12mm to 30mm, meeting corrosion resistance requirements in splash zone and submerged environments. Each assembly is designed to withstand cable pull-in forces up to 50 tons, with bell mouth and cable entry guide geometries optimized to minimize bending radius and friction during installation. Structural design adheres to DNV-GL-ST-0126 and ISO 19902, with fatigue life and load capacity validated through finite element analysis (FEA) for site-specific metocean conditions.
Internal lining options include HDPE (minimum 10mm thickness per ASTM D3350), polyurethane (shore hardness 80A-90A per ASTM D2240), or bare steel with a 300-micron epoxy coating. These linings reduce coefficient of friction to below 0.2 for HDPE and 0.15 for PU, critical for dynamic cable systems subject to thermal cycling and vortex-induced vibration. The J-tube assembly integrates cathodic protection (CP) via bracelet anodes or stand-off anodes, designed to ISO 15589-2 with a design life of 25+ years. Fabrication tolerances follow EN 1090-2 EXC3, with angular deviations of ±0.5 degrees and concentricity within 2mm, ensuring compatibility with monopile or transition piece interfaces. All welds are qualified to AWS D1.1 or ISO 3834-2, with 100% NDT (UT, MPI, or RT) on critical seams. For dynamic cable systems, bend stiffener connectors and I-tube sections are added to manage cable curvature at the seabed interface, with lifting lugs and padeyes rated for 2x the maximum pull-in load and load testing to 1.5x safe working load per ASME BTH-1. Each system is supplied with a material traceability dossier (EN 10204 3.1 or 3.2) and a fabrication record book, enabling full lifecycle tracking from steel mill to offshore installation.
The cable entry guide features a flared bell mouth with a radius of 5x the cable diameter (minimum 1500mm) to prevent damage during pull-in, complying with IEC 60287 for cable bending limits. A J-tube seal system rated for 50-meter water depth (5 bar) per ISO 13628-5 uses inflatable or mechanical seals to prevent ingress of seawater and marine growth. For dynamic applications, bend stiffener connectors and I-tube sections are added to manage cable curvature at the seabed interface. Lifting lugs and padeyes are rated for 2x the maximum pull-in load, with load testing to 1.5x safe working load per ASME BTH-1. Each system is supplied with a material traceability dossier (EN 10204 3.1 or 3.2) and a fabrication record book, enabling full lifecycle tracking from steel mill to offshore installation. Specific data points include fatigue life calculations per DNV-RP-C203 with S-N curves for welded joints, and pull-in force analysis using OrcaFlex to verify cable bending strain below 0.2% per IEC 60840. For CP systems, anode mass is calculated based on current density of 1.5 mA/m² for steel and 0.1 mA/m² for HDPE, with verification via potential measurements per DNV-RP-B401.
In offshore wind energy, J-tube systems are deployed on monopile foundations and transition pieces for array cables and export cables, supporting voltages from 33 kV to 220 kV. For a typical 15 MW turbine, the J-tube accommodates a 630 mm² XLPE cable with a 120mm outer diameter, handling pull-in forces of 30-40 tons during installation. Systems have been supplied for projects in the North Sea and Baltic Sea, where water depths range from 20m to 60m and wave heights exceed 8m. The J-tube is pre-installed on the transition piece at the fabrication yard, with alignment tolerances of ±5mm relative to the cable lay path. Designs incorporate bell mouth angles of 15-30 degrees to reduce cable abrasion, validated by cable pull-out tests at our facility using a 100-ton hydraulic winch and load cells calibrated to ISO 7500-1. Additionally, FEA is performed for each site-specific metocean condition, including wave loading and current profiles, to ensure structural integrity for a 25-year design life.
For oil and gas subsea production systems, cable protection systems serve umbilical and power cable risers on platforms, FPSOs, and subsea manifolds. J-tubes are fabricated from duplex stainless steel (UNS S31803 or S32750) for sour service environments per NACE MR0175/ISO 15156, with wall thicknesses up to 30mm to withstand hydrostatic pressure at 2000m water depth. The bell mouth and cable entry guide are machined to a surface finish of Ra 3.2μm to minimize stress concentrations on dynamic cables. CP systems integrate zinc or aluminum anodes designed to DNV-RP-B401, with a current output of 1.5 mA/m² for bare steel surfaces. These systems have been installed in the Gulf of Mexico and West Africa, where temperatures range from -20°C to 50°C, and cable pull-in forces reach 50 tons for heavy power cables (up to 200mm diameter). For sour service, weld hardness is maintained below 250 HV per NACE MR0175, with 100% ferrite measurement per ASTM E562 for duplex stainless steel welds. Each system includes a detailed installation manual with pull-in procedures, seal inflation pressures, and torque values for bolted connections, ensuring field reliability.
In mining and power generation, J-tubes are used for cable transitions in hydroelectric plants, pumped storage facilities, and offshore substations. For a 500 MW offshore substation, J-tubes with diameters up to 800mm and wall thicknesses of 20mm accommodate multiple 132 kV cables. The internal lining is HDPE (10mm thick) to reduce friction during cable installation and replacement, with a coefficient of friction of 0.18 per ASTM D1894. Systems are designed for a 25-year service life in seawater, with corrosion allowance of 3mm per ISO 9223 for C5-M environments. Retrofit solutions for existing monopiles include clamp-on J-tubes and cable protection sleeves that can be installed by ROV or divers. Each project includes a detailed installation manual with pull-in procedures, seal inflation pressures, and torque values for bolted connections, ensuring field reliability. Specific data points include cable bending strain limited to 0.2% per IEC 60840, and pull-in forces reduced by 15-20% compared to standard designs through optimized bell mouth geometry. For CP integration, anode mass is calculated based on current density of 1.5 mA/m² for steel and 0.1 mA/m² for HDPE, with verification via potential measurements per DNV-RP-B401.
Leading Top Union holds ISO 3834-2 (full quality certification for welding), EN 1090-2 EXC3 (execution class 3 for steel structures), and AWS D1.1 (structural welding code) certifications, ensuring J-tube fabrication meets the highest international standards. The Suzhou facility operates a 30,000 m² workshop with CNC plate cutting (plasma and laser), automated submerged arc welding (SAW) for longitudinal and circumferential seams, and a 100-ton capacity test bed for pull-in simulations. DNV-GL type approval is maintained for welding procedures (WPS) and welder qualifications (WPQ), covering materials from S355J2 to duplex stainless steel. Every J-tube undergoes 100% dimensional inspection using laser scanning (accuracy ±0.5mm) and ultrasonic thickness gauging (UTG) per ASTM E797, with results documented in a digital quality record accessible to clients. For CP systems, anode mass is calculated based on current density of 1.5 mA/m² for steel and 0.1 mA/m² for HDPE, with verification via potential measurements per DNV-RP-B401.
The engineering team provides full design support, including FEA for structural integrity, fatigue life calculations per DNV-RP-C203, and cable pull-in force analysis using OrcaFlex or similar software. Bell mouth geometry is optimized to reduce cable bending strain below 0.2% (per IEC 60840) and minimize pull-in forces by 15-20% compared to standard designs. For CP integration, anode mass requirements are calculated based on current density (1.5 mA/m² for steel, 0.1 mA/m² for HDPE) and design life, with verification via potential measurements per DNV-RP-B401. On-site installation support is offered, including supervision of welding, NDT, and seal testing, with engineers certified to CSWIP or AWS. Project management follows ISO 9001:2015, with weekly progress reports, risk registers, and change order management for EPC contractors. Specific data points include fatigue life calculations using S-N curves for welded joints, and pull-in force analysis to verify cable bending strain below 0.2% per IEC 60840. For CP systems, anode mass is calculated based on current density of 1.5 mA/m² for steel and 0.1 mA/m² for HDPE, with verification via potential measurements per DNV-RP-B401.
J-tube and cable protection systems are delivered with lead times of 12-16 weeks for standard designs and 20-24 weeks for custom duplex stainless steel assemblies, including all NDT and documentation. Pricing is competitive for offshore wind projects in Asia-Pacific and Europe, with volume discounts for orders of 50+ units. A 5-year warranty on materials and workmanship is provided, with extended coverage available for CP systems. Quality assurance includes a pre-shipment inspection (PSI) by third-party agencies such as Bureau Veritas, DNV, or Lloyd's Register, ensuring compliance with project specifications. Contact the technical sales team at info@leadingtopunion.com for a detailed quotation, including FEA reports, material certificates, and installation drawings. EPC firms including Ørsted, Equinor, and Siemens Gamesa are served, with references available upon request. Specific data points include fatigue life calculations per DNV-RP-C203 with S-N curves for welded joints, and pull-in force analysis using OrcaFlex to verify cable bending strain below 0.2% per IEC 60840. For CP systems, anode mass is calculated based on current density of 1.5 mA/m² for steel and 0.1 mA/m² for HDPE, with verification via potential measurements per DNV-RP-B401.
| Capability | Specification |
|---|---|
| J-Tube Diameter | 300 - 800mm |
| Wall Thickness | 12 - 30mm |
| Material | S355J2 / Duplex SS |
| Internal Lining | HDPE / PU / Bare |
| Design Life | 25+ years |
| Pull-in Force | Up to 50 tons |
Send us your requirements and we will respond within 24 hours with pricing and lead time.
